Azure Stack Technical Preview 3 (TP3) Overview Preview Review

server storage I/O trends

Azure Stack Technical Preview 3 (TP3) Overview Preview Review

Perhaps you are aware or use Microsoft Azure, how about Azure Stack?

This is part one of a two-part series looking at Microsoft Azure Stack providing an overview, preview and review. Read part two here that looks at my experiences installing Microsoft Azure Stack Technical Preview 3 (TP3).

For those who are not aware, Azure Stack is a private on-premises extension of the Azure public cloud environment. Azure Stack now in technical preview three (e.g. TP3), or what you might also refer to as a beta (get the bits here).

In addition to being available via download as a preview, Microsoft is also working with vendors such as Cisco, Dell EMC, HPE, Lenovo and others who have announced Azure Stack support. Vendors such as Dell EMC have also made proof of concept kits available that you can buy including server with storage and software. Microsoft has also indicated that once launched for production versions scaling from a few to many nodes, that a single node proof of concept or development system will also remain available.

software defined data infrastructure SDDI and SDDC
Software-Defined Data Infrastructures (SDDI) aka Software-defined Data Centers, Cloud, Virtual and Legacy

Besides being an on-premises, private cloud variant, Azure Stack is also hybrid capable being able to work with public cloud Azure. In addition to working with public cloud Azure, Azure Stack services and in particular workloads can also work with traditional Microsoft, Linux and others. You can use pre built solutions from the Azure marketplace, in addition to developing your applications using Azure services and DevOps tools. Azure Stack enables hybrid deployment into public or private cloud to balance flexibility, control and your needs.

Azure Stack Overview

Microsoft Azure Stack is an on premise (e.g. in your own data center) private (or hybrid when connected to Azure) cloud platform. Currently Azure Stack is in Technical Preview 3 (e.g. TP3) and available as a proof of concept (POC) download from Microsoft. You can use Azure Stack TP3 as a POC for learning, demonstrating and trying features among other activities. Here is link to a Microsoft Video providing an overview of Azure Stack, and here is a good summary of roadmap, licensing and related items.

In summary, Microsoft Azure Stack is:

  • A onsite, on premise, in your data center extension of Microsoft Azure public cloud
  • Enabling private and hybrid cloud with strong integration along with common experiences with Azure
  • Adopt, deploy, leverage cloud on your terms and timeline choosing what works best for you
  • Common processes, tools, interfaces, management and user experiences
  • Leverage speed of deployment and configuration with a purpose-built integrate solution
  • Support existing and cloud native Windows, Linux, Container and other services
  • Available as a public preview via software download, as well as vendors offering solutions

What is Azure Stack Technical Preview 3 (TP3)

This version of Azure Stack is a single node running on a lone physical machine (PM) aka bare metal (BM). However can also be installed into a virtual machine (VM) using nesting. For example I have Azure Stack TP3 running nested on a VMware vSphere ESXi 6.5 systems with a Windows Server 2016 VM as its base operating system.

Microsoft Azure Stack architecture
Click here or on the above image to view list of VMs and other services (Image via Microsoft.com)

The TP3 POC Azure Stack is not intended for production environments, only for testing, evaluation, learning and demonstrations as part of its terms of use. This version of Azure Stack is associated with a single node identity such as Azure Active Directory (AAD) integrated with Azure, or Active Directory Federation Services (ADFS) for standalone modes. Note that since this is a single server deployment, it is not intended for performance, rather, for evaluating functionality, features, APIs and other activities. Learn more about Azure Stack TP3 details here (or click on image) including names of various virtual machines (VMs) as well as their roles.

Where to learn more

The following provide more information and insight about Azure, Azure Stack, Microsoft and Windows among related topics.

  • Azure Stack Technical Preview 3 (TP3) Overview Preview Review
  • Azure Stack TP3 Overview Preview Review Part II
  • Azure Stack Technical Preview (get the bits aka software download here)
  • Azure Stack deployment prerequisites (Microsoft)
  • Microsoft Azure Stack troubleshooting (Microsoft Docs)
  • Azure Stack TP3 refresh tips (Azure Stack)
  • Here is a good post with a tip about not applying certain Windows updates to Azure stack TP3 installs.
  • Configure Azure stack TP3 to be available on your own network (Azure Stack)
  • Azure Stack TP3 Marketplace syndication (Azure Stack)
  • Azure Stack TP3 deployment experiences (Azure Stack)
  • Frequently asked questions for Azure Stack (Microsoft)
  • Deploy Azure Stack (Microsoft)
  • Connect to Azure Stack (Microsoft)
  • Azure Active Directory (AAD) and Active Directory Federation Services (ADFS)
  • Azure Stack TP2 deployment experiences by Niklas Akerlund (@vNiklas) useful for tips for TP3
  • Deployment Checker for Azure Stack Technical Preview (Microsoft Technet)
  • Azure stack and other tools (Github)
  • How to enable nested virtualization on Hyper-V Windows Server 2016
  • Dell EMC announce Microsoft Hybrid Cloud Azure Stack (Dell EMC)
  • Dell EMC Cloud for Microsoft Azure Stack (Dell EMC)
  • Dell EMC Cloud for Microsoft Azure Stack Data Sheet (Dell EMC PDF)
  • Dell EMC Cloud Chats (Dell EMC Blog)
  • Microsoft Azure stack forum
  • Dell EMC Microsoft Azure Stack solution
  • Gaining Server Storage I/O Insight into Microsoft Windows Server 2016
  • Overview Review of Microsoft ReFS (Reliable File System) and resource links
  • Via WServerNews.com Cloud (Microsoft Azure) storage considerations
  • Via CloudComputingAdmin.com Cloud Storage Decision Making: Using Microsoft Azure for cloud storage
  • www.thenvmeplace.com, www.thessdplace.com, www.objectstoragecenter.com and www.storageio.com/converge

    • What this all means

    A common question is if there is demand for private and hybrid cloud, in fact, some industry expert pundits have even said private, or hybrid are dead which is interesting, how can something be dead if it is just getting started. Likewise, it is early to tell if Azure Stack will gain traction with various organizations, some of whom may have tried or struggled with OpenStack among others.

    Given a large number of Microsoft Windows-based servers on VMware, OpenStack, Public cloud services as well as other platforms, along with continued growing popularity of Azure, having a solution such as Azure Stack provides an attractive option for many environments. That leads to the question of if Azure Stack is essentially a replacement for Windows Servers or Hyper-V and if only for Windows guest operating systems. At this point indeed, Windows would be an attractive and comfortable option, however, given a large number of Linux-based guests running on Hyper-V as well as Azure Public, those are also primary candidates as are containers and other services.

    Continue reading more in part two of this two-part series here including installing Microsoft Azure Stack TP3.

    Ok, nuff said (for now…).

    Cheers
    Gs

    Greg Schulz – Microsoft MVP Cloud and Data Center Management, VMware vExpert (and vSAN). Author Cloud and Virtual Data Storage Networking (CRC Press), The Green and Virtual Data Center (CRC Press), Resilient Storage Networks (Elsevier) and twitter @storageio. Watch for the spring 2017 release of his new book "Software-Defined Data Infrastructure Essentials" (CRC Press).

    Courteous comments are welcome for consideration. First published on https://storageioblog.com any reproduction in whole, in part, with changes to content, without source attribution under title or without permission is forbidden.

    All Comments, (C) and (TM) belong to their owners/posters, Other content (C) Copyright 2006-2023 Server StorageIO(R) and UnlimitedIO. All Rights Reserved.

    Posted on

    Dell EMC Announce Azure Stack Hybrid Cloud Solution

    server storage I/O trends

    Dell EMC Azure Stack Hybrid Cloud Solution

    Dell EMC have announced their Microsoft Azure Stack hybrid cloud platform solutions. This announcement builds upon earlier statements of support and intention by Dell EMC to be part of the Microsoft Azure Stack community. For those of you who are not familiar, Azure Stack is an on premise extension of Microsoft Azure public cloud.

    What this means is that essentially you can have the Microsoft Azure experience (or a subset of it) in your own data center or data infrastructure, enabling cloud experiences and abilities at your own pace, your own way with control. Learn more about Microsoft Azure Stack including my experiences with and installing Technique Preview 3 (TP3) here.

    software defined data infrastructures SDDI and SDDC

    What Is Azure Stack

    Microsoft Azure Stack is an on-premises (e.g. in your own data center) private (or hybrid when connected to Azure) cloud platform. Currently Azure Stack is in Technical Preview 3 (e.g. TP3) and available as a proof of concept (POC) download from Microsoft. You can use Azure Stack TP3 as a POC for learning, demonstrating and trying features among other activities. Here is link to a Microsoft Video providing an overview of Azure Stack, and here is a good summary of roadmap, licensing and related items.

    In summary, Microsoft Azure Stack and this announcement is about:

    • A onsite, on-premises, in your data center extension of Microsoft Azure public cloud
    • Enabling private and hybrid cloud with good integration along with shared experiences with Azure
    • Adopt, deploy, leverage cloud on your terms and timeline choosing what works best for you
    • Common processes, tools, interfaces, management and user experiences
    • Leverage speed of deployment and configuration with a purpose-built integrated solution
    • Support existing and cloud-native Windows, Linux, Container and other services
    • Available as a public preview via software download, as well as vendors offering solutions

    What Did Dell EMC Announce

    Dell EMC announced their initial product, platform solutions, and services for Azure Stack. This includes a Proof of Concept (PoC) starter kit (PE R630) for doing evaluations, prototype, training, development test, DevOp and other initial activities with Azure Stack. Dell EMC also announced a larger for production deployment, or large-scale development, test DevOp activity turnkey solution. The initial production solution scales from 4 to 12 nodes, or from 80 to 336 cores that include hardware (server compute, memory, I/O and networking, top of rack (TOR) switches, management, Azure Stack software along with services. Other aspects of the announcement include initial services in support of Microsoft Azure Stack and Azure cloud offerings.
    server storage I/O trends
    Image via Dell EMC

    The announcement builds on joint Dell EMC Microsoft experience, partnerships, technologies and services spanning hardware, software, on site data center and public cloud.
    server storage I/O trends
    Image via Dell EMC

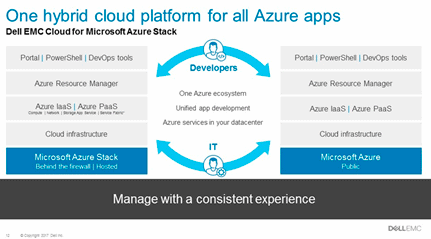

    Dell EMC along with Microsoft have engineered a hybrid cloud platform for organizations to modernize their data infrastructures enabling faster innovate, accelerate deployment of resources. Includes hardware (server compute, memory, I/O networking, storage devices), software, services, and support.
    server storage I/O trends
    Image via Dell EMC

    The value proposition of Dell EMC hybrid cloud for Microsoft Azure Stack includes consistent experience for developers and IT data infrastructure professionals. Common experience across Azure public cloud and Azure Stack on-premises in your data center for private or hybrid. This includes common portal, Powershell, DevOps tools, Azure Resource Manager (ARM), Azure Infrastructure as a Service (IaaS) and Platform as a Service (PaaS), Cloud Infrastructure and associated experiences (management, provisioning, services).
    server storage I/O trends
    Image via Dell EMC

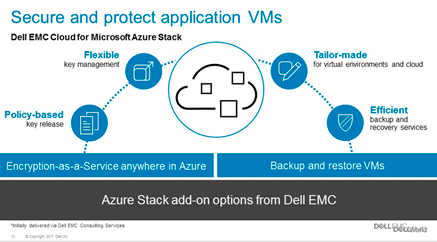

    Secure, protect, preserve and serve applications VMs hosted on Azure Stack with Dell EMC services along with Microsoft technologies. Dell EMC data protection including backup and restore, Encryption as a Service, host guard and protected VMs, AD integration among other features.
    server storage I/O trends
    Image via Dell EMC

    Dell EMC services for Microsoft Azure Stack include single contact support for prepare, assessment, planning; deploy with rack integration, delivery, configuration; extend the platform with applicable migration, integration with Office 365 and other applications, build new services.
    server storage I/O trends
    Image via Dell EMC

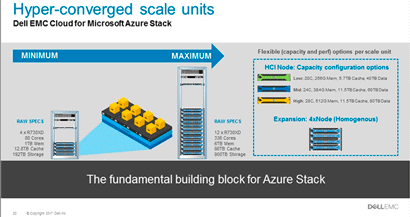

    Dell EMC Hyper-converged scale out solutions range from minimum of 4 x PowerEdge R730XD (total raw specs include 80 cores (4 x 20), 1TB RAM (4 x 256GB), 12.8TB SSD Cache, 192TB Storage, plus two top of row network switches (Dell EMC) and 1U management server node. Initial maximum configuration raw specification includes 12 x R730XD (total 336 cores), 6TB memory, 86TB SSD cache, 900TB storage along with TOR network switch and management server.

    The above configurations initially enable HCI nodes of small (low) 20 cores, 256GB memory, 5.7TB SSD cache, 40TB storage; mid size 24 cores, 384GB memory, 11.5TB cache and 60TB storage; high-capacity with 28 cores, 512GB memory, 11.5TB cache and 80TB storage per node.
    server storage I/O trends
    Image via Dell EMC

    Dell EMC Evaluator program for Microsoft Azure Stack including the PE R630 for PoCs, development, test and training environments. The solution combines Microsoft Azure Stack software, Dell EMC server with Intel E5-2630 (10 cores, 20 threads / logical processors or LPs), or Intel E5-2650 (12 cores, 24 threads / LPs). Memory is 128GB or 256GB, storage includes flash SSD (2 x 480GB SAS) and HDD (6 x 1TB SAS).
    and networking.
    server storage I/O trends
    Image via Dell EMC

    Collaborative support single contact between Microsoft and Dell EMC

    Who Is This For

    This announcement is for any organization that is looking for an on-premises, in your data center private or hybrid cloud turnkey solution stack. This initial set of announcements can be for those looking to do a proof of concept (PoC), advanced prototype, support development test, DevOp or gain cloud-like elasticity, ease of use, rapid procurement and other experiences of public cloud, on your terms and timeline. Naturally, there is a strong affinity and seamless experience for those already using, or planning to use Azure Public Cloud for Windows, Linux, Containers and other workloads, applications, and services.

    What Does This Cost

    Check with your Dell EMC representative or partner for exact pricing which varies for the size and configurations. There are also various licensing models to take into consideration if you have Microsoft Enterprise License Agreements (ELAs) that your Dell EMC representative or business partner can address for you. Likewise being cloud based, there is also time usage-based options to explore.

    Where to learn more

    What this all means

    The dust is starting to settle on last falls Dell EMC integration, both of whom have long histories working with, and partnering along with Microsoft on legacy, as well as virtual software-defined data centers (SDDC), software-defined data infrastructures (SDDI), native, and hybrid clouds. Some may view the Dell EMC VMware relationship as a primary focus, however, keep in mind that both Dell and EMC had worked with Microsoft long before VMware came into being. Likewise, Microsoft remains one of the most commonly deployed operating systems on VMware-based environments. Granted Dell EMC have a significant focus on VMware, they both also sell, service and support many services for Microsoft-based solutions.

    What about Cisco, HPE, Lenovo among others who have to announce or discussed their Microsoft Azure Stack intentions? Good question, until we hear more about what those and others are doing or planning, there is not much more to do or discuss beyond speculating for now. Another common question is if there is demand for private and hybrid cloud, in fact, some industry expert pundits have even said private, or hybrid are dead which is interesting, how can something be dead if it is just getting started. Likewise, it is early to tell if Azure Stack will gain traction with various organizations, some of whom may have tried or struggled with OpenStack among others.

    Given a large number of Microsoft Windows-based servers on VMware, OpenStack, Public cloud services as well as other platforms, along with continued growing popularity of Azure, having a solution such as Azure Stack provides an attractive option for many environments. That leads to the question of if Azure Stack is essentially a replacement for Windows Servers or Hyper-V and if only for Windows guest operating systems. At this point indeed, Windows would be an attractive and comfortable option, however, given a large number of Linux-based guests running on Hyper-V as well as Azure Public, those are also primary candidates as are containers and other services.

    Overall, this is an excellent and exciting move for both Microsoft extending their public cloud software stack to be deployed within data centers in a hybrid way, something that those customers are familiar with doing. This is a good example of hybrid being spanning public and private clouds, remote and on-premises, as well as familiarity and control of traditional procurement with the flexibility, elasticity experience of clouds.

    software defined data infrastructures SDDI and SDDC

    Some will say that if OpenStack is struggling in many organizations and being free open source, how Microsoft can have success with Azure Stack. The answer could be that some organizations have struggled with OpenStack while others have not due to lack of commercial services and turnkey support. Having installed both OpenStack and Azure Stack (as well as VMware among others), Azure Stack is at least the TP3 PoC is easy to install, granted it is limited to one node, unlike the production versions. Likewise, there are easy to use appliance versions of OpenStack that are limited in scale, as well as more involved installs that unlock full functionality.

    OpenStack, Azure Stack, VMware and others have their places, along, or supporting containers along with other tools. In some cases, those technologies may exist in the same environment supporting different workloads, as well as accessing various public clouds, after all, Hybrid is the home run for many if not most legality IT environments.

    Overall this is a good announcement from Dell EMC for those who are interested in, or should become more aware about Microsoft Azure Stack, Cloud along with hybrid clouds. Likewise look forward to hearing more about the solutions from others who will be supporting Azure Stack as well as other hybrid (and Virtual Private Clouds).

    Ok, nuff said (for now…).

    Cheers
    Gs

    Greg Schulz – Microsoft MVP Cloud and Data Center Management, VMware vExpert (and vSAN). Author Cloud and Virtual Data Storage Networking (CRC Press), The Green and Virtual Data Center (CRC Press), Resilient Storage Networks (Elsevier) and twitter @storageio. Watch for the spring 2017 release of his new book "Software-Defined Data Infrastructure Essentials" (CRC Press).

    Courteous comments are welcome for consideration. First published on https://storageioblog.com any reproduction in whole, in part, with changes to content, without source attribution under title or without permission is forbidden.

    All Comments, (C) and (TM) belong to their owners/posters, Other content (C) Copyright 2006-2023 Server StorageIO(R) and UnlimitedIO. All Rights Reserved.

    Posted on

    April 2017 Server StorageIO Data Infrastructures Update Newsletter

    Volume 17, Issue IV

    Hello and welcome to the April 2017 issue of the Server StorageIO data infrastructures update newsletter.

    Spring is here in the northern hemisphere which means that there is a lot of things going on, or about to be occurring soon. April has been a busy month for me including spending time in Europe doing some seminar and workshop presentations, along with other consulting advisory activities involving data infrastructures.

    Besides travel, I have been busy working on client projects, attending to various post-production activities for my new book Software Defined Data Infrastructure Essentials (more about this in the May issue). Other things I have been doing include being briefed on upcoming technology announcements along with some hands activities trying out things that will be covered in future updates, as well as working with some interesting NDA items that, well, are NDA.

    Be sure to check out the recent blog posts, as well as industry trends perspectives commentary below, along with recent and upcoming webinar among events.

    In This Issue

    Enjoy this abbreviated edition of the Server StorageIO update newsletter.

    Cheers GS



    Server StorageIOblog Posts

    Recent and popular Server StorageIOblog posts include:

    View other recent as well as past StorageIOblog posts here

    Server StorageIO Commentary in the news

    Recent Server StorageIO industry trends perspectives commentary in the news.

    Via SearchCloudComputing: Virtual private clouds an alternative to on-premisess computing
    Hybrid clouds continue to grow in popularity as well as deployed usage, from storage to compute to networking, said Greg Schulz, the senior advisory analyst at StorageIO in Stillwater, Minn. Most cloud and service providers talk about hybrid along with public clouds, while AWS tends to talk about [VPC aka virtual private clouds].

    Via SearchDataCenter: Ask the right questions before committing to a collocation SLA policy
    Do you just need a physical space to put things, or do you need high bandwidth and ultra-reliable power? asked Greg Schulz, senior advisory analyst at StorageIO, a consultancy in Stillwater, Minn.

    Via EnterpriseStorageForum: Tips for Enterprise SSD Form Factor Selection Deployment
    It’s doubtful that there is one form factor to rule them all. Some may be best for X but lousy for Y. But Greg Schulz, an analyst at StorageIO Group notes that many vendors attempt to champion a particular flash SSD form factor and interface, claiming it’s the best and only fit for the enterprise.

    Via SearchITOperations: Storage performance analysis reveals IT’s ongoing bottleneck
    Sometimes it takes more than an aspirin to cure a headache, said Greg Schulz

    Via SearchDNS: Parsing through the software-defined storage hype
    Beyond scalability, SDS technology aims for freedom from the limits of proprietary hardware, explained StorageIO analyst Greg Schulz.

    Via InfoStor: Data Storage Industry Braces for AI and Machine Learning
    AI could also lead to untapped hidden or unknown value in existing data that has no or little perceived value, said Greg Schulz.

    View more Server, Storage and I/O trends and perspectives comments here

    Events and Activities

    Recent and upcoming event activities.

    May 11, 2017 – Webinar – Email Archiving, Compliance and Ransomware

    May 8-10, 2017 – Dell EMCworld – Las Vegas

    April 3-7, 2017 – Seminars – Dutch workshop seminar series – Nijkerk Netherlands

    March 15, 2017 – Webinar – SNIA/BrightTalk – HyperConverged and Storage – 10AM PT

    See more webinars and activities on the Server StorageIO Events page here.

    Server StorageIO Industry Resources and Links

    Useful links and pages:
    Microsoft TechNet – Various Microsoft related from Azure to Docker to Windows
    storageio.com/links – Various industry links (over 1,000 with more to be added soon)
    objectstoragecenter.com – Cloud and object storage topics, tips and news items
    OpenStack.org – Various OpenStack related items
    storageio.com/protect – Various data protection items and topics
    thenvmeplace.com – Focus on NVMe trends and technologies
    thessdplace.com – NVM and Solid State Disk topics, tips and techniques
    storageio.com/converge – Various CI, HCI and related SDS topics
    storageio.com/performance – Various server, storage and I/O benchmark and tools
    VMware Technical Network – Various VMware related items

    Cheers
    Gs

    Greg Schulz – Microsoft MVP Cloud and Data Center Management, VMware vExpert (and vSAN). Author Cloud and Virtual Data Storage Networking (CRC Press), The Green and Virtual Data Center (CRC Press) and Resilient Storage Networks (Elsevier) and twitter @storageio. Watch for the spring 2017 release of his new book Software-Defined Data Infrastructure Essentials(CRC Press).

    Courteous comments are welcome for consideration. First published on https://storageioblog.com any reproduction in whole, in part, with changes to content, without source attribution under title or without permission is forbidden.

    All Comments, (C) and (TM) belong to their owners/posters, Other content (C) Copyright 2006-2023 Server StorageIO(R) and UnlimitedIO. All Rights Reserved.

    Posted on

    VMware vSAN 6.6 hyper-converged (HCI) software defined data infrastructure

    server storage I/O trends

    VMware vSAN 6.6 hyper-converged (HCI) software defined data infrastructure

    In case you missed it, VMware announced vSAN v6.6 hyper-converged infrastructure (HCI) software defined data infrastructure solution. This is the first of a five-part series about VMware vSAN V6.6. Part II (just the speeds feeds please) is located here, part III (reducing cost and complexity) located here, part IV (scaling ROBO and data centers today) found here, as well as part V here (VMware vSAN evolution, where to learn more and summary).

    VMware vSAN 6.6
    Image via VMware

    For those who are not aware, vSAN is a VMware virtual Storage Area Network (e.g. vSAN) that is software-defined, part of being a software-defined data infrastructure (SDDI) and software-defined data center (SDDC). Besides being software-defined vSAN is HCI combining compute (server), I/O networking, storage (space and I/O) along with hypervisors, management, and other tools.

    Software-defined data infrastructure

    Excuse Me, What is vSAN and who is if for

    Some might find it odd having to explain what vSAN is, on the other hand, not everybody is dialed into the VMware world ecosystem, so let’s give them some help, for everybody else, and feel free to jump ahead.

    For those not familiar, VMware vSAN is an HCI software-defined storage solution that converges compute (hypervisors and server) with storage space capacity and I/O performance along with networking. Being HCI means that with vSAN as you scale compute, storage space capacity and I/O performance also increases in an aggregated fashion. Likewise, increase storage space capacity and server I/O performance you also get more compute capabilities (along with memory).

    For VMware-centric environments looking to go CI or HCI, vSAN offers compelling value proposition leveraging known VMware tools and staff skills (knowledge, experience, tradecraft). Another benefit of vSAN is the ability to select your hardware platform from different vendors, a trend that other CI/HCI vendors have started to offer as well.

    CI and HCI data infrastructure

    Keep in mind that fast applications need a fast server, I/O and storage, as well as server storage I/O needs CPU along with memory to generate I/O operations (IOPs) or move data. What this all means is that HCI solutions such as VMware vSAN combine or converge the server compute, hypervisors, storage file system, storage devices, I/O and networking along with other functionality into an easy to deploy (and management) turnkey solution.

    Learn more about CI and HCI along with who some other vendors are as well as considerations at www.storageio.com/converge. Also, visit VMware sites to find out more about vSphere ESXi hypervisors, vSAN, NSX (Software Defined Networking), vCenter, vRealize along with other tools for enabling SDDC and SDDI.

    Give Me the Quick Elevator Pitch Summary

    VMware has enhanced vSAN with version 6.6 (V6.6) enabling new functionality, supporting new hardware platforms along with partners, while reducing costs, improving scalability and resiliency for SDDC and SDDI environments. This includes from small medium business (SMB) to mid-market to small medium enterprise (SME) as well as workgroup, departmental along with Remote Office Branch Office (ROBO).

    Being a HCI solution, management functions of the server, storage, I/O, networking, hypervisor, hardware, and software are converged to improve management productivity. Also, vSAN integrated with VMware vSphere among other tools enable modern, robust data infrastructure that serves, protect, preserve, secure and stores data along with their associated applications.

    Where to Learn More

    The following are additional resources to learn more about vSAN and related technologies.

    What this all means

    Overall a good set of enhancements as vSAN continues its evolution looking back just a few years ago, to where it is today and will be in the future. If you have not looked at vSAN recently, take some time beyond reading this piece to learn some more.

    Continue reading more about VMware vSAN 6.6 in part II (just the speeds feeds please) is located here, part III (reducing cost and complexity) located here, part IV (scaling ROBO and data centers today) located here, as well as part V here (VMware vSAN evolution, where to learn more and summary).

    Ok, nuff said (for now…).

    Cheers
    Gs

    Greg Schulz – Microsoft MVP Cloud and Data Center Management, VMware vExpert (and vSAN). Author Cloud and Virtual Data Storage Networking (CRC Press), The Green and Virtual Data Center (CRC Press), Resilient Storage Networks (Elsevier) and twitter @storageio. Watch for the spring 2017 release of his new book “Software-Defined Data Infrastructure Essentials” (CRC Press).

    Courteous comments are welcome for consideration. First published on https://storageioblog.com any reproduction in whole, in part, with changes to content, without source attribution under title or without permission is forbidden.

    All Comments, (C) and (TM) belong to their owners/posters, Other content (C) Copyright 2006-2023 Server StorageIO(R) and UnlimitedIO. All Rights Reserved.

    Posted on

    VMware vSAN V6.6 Part II (just the speeds feeds features please)

    server storage I/O trends

    VMware vSAN v6.6 Part II (just the speeds feeds features please)

    In case you missed it, VMware announced vSAN v6.6 hyper-converged infrastructure (HCI) software defined data infrastructure solution. This is the second of a five-part series about VMware vSAN V6.6. View Part I here, part III (reducing cost and complexity) located here, part IV (scaling ROBO and data centers today) found here, as well as part V here (VMware vSAN evolution, where to learn more and summary).

    VMware vSAN 6.6
    Image via VMware

    For those who are not aware, vSAN is a VMware virtual Storage Area Network (e.g. vSAN) that is software-defined, part of being a software-defined data infrastructure (SDDI) and software-defined data center (SDDC). Besides being software-defined vSAN is HCI combining compute (server), I/O networking, storage (space and I/O) along with hypervisors, management, and other tools.

    Just the Speeds and Feeds Please

    For those who just want to see the list of what’s new with vSAN V6.6, here you go:

    • Native encryption for data-at-rest
    • Compliance certifications
    • Resilient management independent of vCenter
    • Degraded Disk Handling v2.0 (DDHv2)
    • Smart repairs and enhanced rebalancing
    • Intelligent rebuilds using partial repairs
    • Certified file service & data protection solutions
    • Stretched clusters with local failure protection
    • Site affinity for stretched clusters
    • 1-click witness change for Stretched Cluster
    • vSAN Management Pack for vRealize
    • Enhanced vSAN SDK and PowerCLI
    • Simple networking with Unicast
    • vSAN Cloud Analytics with real-time support notification and recommendations
    • vSAN ConfigAssist with 1-click hardware lifecycle management
    • Extended vSAN Health Services
    • vSAN Easy Install with 1-click fixes
    • Up to 50% greater IOPS for all-flash with optimized checksum and dedupe
    • Support for new next-gen workloads
    • vSAN for Photon in Photon Platform 1.1
    • Day 0 support for latest flash technologies
    • Expanded caching tier choice
    • Docker Volume Driver 1.1

    What’s New and Value Proposition of vSAN 6.6

    Let’s take a closer look beyond the bullet list of what’s new with vSAN 6.6, as well as perspectives of those features to address different needs. The VMware vSAN proposition is to evolve and enable modernizing data infrastructures with HCI powered by vSphere along with vSAN.

    Three main themes or characteristics (and benefits) of vSAN 6.6 include addressing (or enabling):

    • Reducing risk while scaling
    • Reducing cost and complexity
    • Scaling for today and tomorrow

    VMware vSAN 6.6 summary
    Image via VMware

    Reducing risk while scaling

    Reducing (or removing) risk while evolving your data infrastructure with HCI including flexibility of choosing among five support hardware vendors along with native security. This includes native security, availability and resiliency enhancements (including intelligent rebuilds) without sacrificing storage efficiency (capacity) or effectiveness (performance productivity), management and choice.

    VMware vSAN DaRE
    Image via VMware

    Dat level Data at Rest Encryption (DaRE) of all vSAN dat objects that are enabled at a cluster level. The new functionality supports hybrid along with all flash SSD as well as stretched clusters. The VMware vSAN DaRE implementation is an alternative to using self-encrypting drives (SEDs) reducing cost, complexity and management activity. All vSAN features including data footprint reduction (DFR) features such as compression and deduplication are supported. For security, vSAN DaRE integrations with compliance key management technologies including those from SafeNet, Hytrust, Thales and Vormetric among others.

    VMware vSAN management
    Image via VMware

    ESXi HTML 5 based host client, along with CLI via ESXCLI for administering vSAN clusters as an alternative in case your vCenter server(s) are offline. Management capabilities include monitoring of critical health and status details along with configuration changes.

    VMware vSAN health management
    Image via VMware

    Health monitoring enhancements include handling of degraded vSAN devices with intelligence proactively detecting impending device failures. As part of the functionality, if a replica of the failing (or possible soon to fail) device exists, vSAN can take action to maintain data availability.

    Where to Learn More

    The following are additional resources to find out more about vSAN and related technologies.

    What this all means

    With each new release, vSAN is increasing its feature, functionality, resiliency and extensiveness associated with traditional storage and non-CI or HCI solutions. Continue reading more about VMware vSAN 6.6 in Part I here, part III (reducing cost and complexity) located here, part IV (scaling ROBO and data centers today) found here, as well as part V here (VMware vSAN evolution, where to learn more and summary).

    Ok, nuff said (for now…).

    Cheers
    Gs

    Greg Schulz – Microsoft MVP Cloud and Data Center Management, VMware vExpert (and vSAN). Author Cloud and Virtual Data Storage Networking (CRC Press), The Green and Virtual Data Center (CRC Press), Resilient Storage Networks (Elsevier) and twitter @storageio. Watch for the Spring 2017 release of his new book “Software-Defined Data Infrastructure Essentials” (CRC Press).

    Courteous comments are welcome for consideration. First published on https://storageioblog.com any reproduction in whole, in part, with changes to content, without source attribution under title or without permission is forbidden.

    All Comments, (C) and (TM) belong to their owners/posters, Other content (C) Copyright 2006-2023 Server StorageIO(R) and UnlimitedIO. All Rights Reserved.

    Posted on

    VMware vSAN V6.6 Part III (reducing costs complexity)

    server storage I/O trends

    VMware vSAN V6.6 Part III (Reducing costs complexity)

    In case you missed it, VMware announced vSAN v6.6 hyper-converged infrastructure (HCI) software defined data infrastructure solution. This is the third of a five-part series about VMware vSAN V6.6. View Part I here, Part II (just the speeds feeds please) is located here, part IV (scaling ROBO and data centers today) found here, as well as part V here (VMware vSAN evolution, where to learn more and summary).

    VMware vSAN 6.6
    Image via VMware

    For those who are not aware, vSAN is a VMware virtual Storage Area Network (e.g. vSAN) that is software-defined, part of being a software-defined data infrastructure (SDDI) and software-defined data center (SDDC). Besides being software-defined vSAN is HCI combining compute (server), I/O networking, storage (space and I/O) along with hypervisors, management, and other tools.

    Reducing cost and complexity

    Reducing your total cost of ownership (TCO) including lower capital expenditures (CapEx) and operating (OPEX). VMware is claiming CapEx and OpEx reduced TCO of 50%. Keep in mind that solutions such as vSAN also can help drive return on investment (ROI) as well as return on innovation (the other ROI) via improved productivity, effectiveness, as well as efficiencies (savings). Another aspect of addressing TCO and ROI includes flexibility leveraging stretched clusters to address HA, BR, BC and DR Availability needs cost effectively. These enhancements include efficiency (and effectiveness e.g. productivity) at scale, proactive cloud analytics, and intelligent operations.

    VMware vSAN stretch cluster
    Image via VMware

    Low cost (or cost-effective) Local, Remote Resiliency and Data Protection with Stretched Clusters across sites. Upon a site failure, vSAN maintains availability is leveraging surviving site redundancy. For performance and productivity effectiveness, I/O traffic is kept local where possible and practical, reducing cross-site network workload. Bear in mind that the best I/O is the one you do not have to do, the second is the one with the least impact.

    This means if you can address I/Os as close to the application as possible (e.g. locality of reference), that is a better I/O. On the other hand, when data is not local, then the best I/O is the one involving a local or remote site with least overhead impact to applications, as well as server storage I/O (including networks) resources. Also keep in mind that with vSAN you can fine tune availability, resiliency and data protection to meet various needs by adjusting fault tolerant mode (FTM) to address a different number of failures to tolerate.

    server storage I/O locality of reference

    Network and cloud friendly Unicast Communication enhancements. To improve performance, availability, and capacity (CPU demand reduction) multicast communications are no longer used making for easier, simplified single site and stretched cluster configurations. When vSAN clusters upgrade to V6.6 unicast is enabled.

    VMware vSAN unicast
    Image via VMware

    Gaining insight, awareness, adding intelligence to avoid flying blind, introducing vSAN Cloud Analytics and Proactive Guidance. Part of a VMware customer, experience improvement program, leverages cloud-based health checks for easy online known issue detection along with relevant knowledge bases pieces as well as other support notices. Whether you choose to refer to this feature as advanced analytics, artificial intelligence (AI), proactive rules enabled management problem isolation, solving resolution I will leave that up to you.

    VMware vSAN cloud analytics
    Image via VMware

    Part of the new tools analytics capabilities and prescriptive problem resolution (hmm, some might call that AI or advanced analytics, just saying), health check issues are identified, notifications along with suggested remediation. Another feature is the ability to leverage continuous proactive updates for advance remediation vs. waiting for subsequent vSAN releases. Net result and benefit are reducing time, the complexity of troubleshooting converged data infrastructure issues spanning servers, storage, I/O networking, hardware, software, cloud, and configuration. In other words, enable you more time to be productive vs. finding and fixing problems leveraging informed awareness for smart decision-making.

    Where to Learn More

    The following are additional resources to find out more about vSAN and related technologies.

    What this all means

    Continue reading more about VMware vSAN 6.6 in part I here, part II (just the speeds feeds please) located here, part IV (scaling ROBO and data centers today) found here, as well as part V here (VMware vSAN evolution, where to learn more and summary).

    Ok, nuff said (for now…).

    Cheers
    Gs

    Greg Schulz – Microsoft MVP Cloud and Data Center Management, VMware vExpert (and vSAN). Author Cloud and Virtual Data Storage Networking (CRC Press), The Green and Virtual Data Center (CRC Press), Resilient Storage Networks (Elsevier) and twitter @storageio. Watch for the spring 2017 release of his new book “Software-Defined Data Infrastructure Essentials” (CRC Press).

    Courteous comments are welcome for consideration. First published on https://storageioblog.com any reproduction in whole, in part, with changes to content, without source attribution under title or without permission is forbidden.

    All Comments, (C) and (TM) belong to their owners/posters, Other content (C) Copyright 2006-2023 Server StorageIO(R) and UnlimitedIO. All Rights Reserved.

    Posted on

    VMware vSAN V6.6 Part IV (HCI scaling ROBO and data centers today)

    server storage I/O trends

    VMware vSAN V6.6 Part IV (HCI scaling ROBO and data centers today)

    In case you missed it, VMware announced vSAN v6.6 hyper-converged infrastructure (HCI) software defined data infrastructure solution. This is the fourth of a five-part series about VMware vSAN V6.6. View Part I here, Part II (just the speeds feeds please) is located here, part III (reducing cost and complexity) located here, as well as part V here (VMware vSAN evolution, where to learn more and summary).

    VMware vSAN 6.6
    Image via VMware

    For those who are not aware, vSAN is a VMware virtual Storage Area Network (e.g. vSAN) that is software-defined, part of being a software-defined data infrastructure (SDDI) and software-defined data center (SDDC). Besides being software-defined vSAN is HCI combining compute (server), I/O networking, storage (space and I/O) along with hypervisors, management, and other tools.

    Scaling HCI for ROBO and data centers today and for tomorrow

    Scaling with stability for today and tomorrow. This includes addressing your applications Performance, Availability, Capacity and Economics (PACE) workload requirements today and for the future. By scaling with stability means boosting performance, availability (data protection, security, resiliency, durable, FTT), effective capacity without one of those attributes compromising another.

    VMware vSAN data center scaling
    Image via VMware

    Scaling today for tomorrow also means adapting to today’s needs while also flexible to evolve with new application workloads, hardware as well as a cloud (public, private, hybrid, inter and intra-cloud). As part of continued performance improvements, enhancements to optimize for higher performance flash SSD including NVMe based devices.

    VMware vSAN cloud analytics
    Image via VMware

    Part of scaling with stability means enhancing performance (as well as productivity) or the effectiveness of a solution. Keep in mind that efficiency is often associated with storage (or server or network) space capacity savings or reductions. In that context then effectiveness means performance and productivity or how much work can be done with least overhead impact. With vSAN, V6.6 performance enhancements include reduced checksum overhead, enhanced compression, and deduplication, along with destaging optimizations.

    Other enhancements that help collectively contribute to vSAN performance improvements include VMware object handling (not to be confused with cloud or object storage S3 or Swift objects) as well as faster iSCSI for vSAN. Also improved are more accurate refined cache sizing guidelines. Keep in mind that a little bit of NAND flash SSD or SCM in the right place can have a significant benefit, while a lot of flash cache costs much cash.

    Part of enabling and leveraging new technology today includes support for larger capacity 1.6TB flash SSD drives for cache, as well as lower read latency with 3D XPoint and NVMe drives such as those from Intel among others. Refer to the VMware vSAN HCL for current supported devices which continue evolve along with the partner ecosystem. Future proofing is also enabled where you can grow from today to tomorrow as new storage class memories (SCM) among other flash SSD as well as NVMe enhanced storage among other technologies are introduced into the market as well as VMware vSAN HCL.

    VMware vSAN and data center class applications
    Image via VMware

    Traditional CI and in particular many HCI solutions have been optimized or focused on smaller application workloads including VDI resulting in the perception that HCI, in general, is only for smaller environments, or larger environment non-mission critical workloads. With vSAN V6.6 VMware is addressing and enabling larger environment mission critical applications including Intersystem Cache medical health management software among others. Other application workload extensions including support for higher performance demanding Hadoop big data analytics, a well as extending virtual desktop infrastructure (VDI) workspace with XenDesktop/XenApp, along with Photon 1.1 container support.

    What about VMware vSAN 6.6. Packaging and License Options

    As part of vSAN 6.6 VMware several solution bundle packaged options for the data center as well as smaller ROBO environment. Contact your VMware representative or partner to learn more about specific details.

    VMware vSAN cloud analytics
    Image via VMware

    VMware vSAN cloud analytics
    Image via VMware

    Where to Learn More

    The following are additional resources to find out more about vSAN and related technologies.

    What this all means

    Continue reading more about VMware vSAN 6.6 in part I here, part II (just the speeds feeds please) is located here, part III (reducing cost and complexity) located here as well as part V here (VMware vSAN evolution, where to learn more and summary).

    Ok, nuff said (for now…).

    Cheers
    Gs

    Greg Schulz – Microsoft MVP Cloud and Data Center Management, VMware vExpert (and vSAN). Author Cloud and Virtual Data Storage Networking (CRC Press), The Green and Virtual Data Center (CRC Press), Resilient Storage Networks (Elsevier) and twitter @storageio. Watch for the Spring 2017 release of his new book “Software-Defined Data Infrastructure Essentials” (CRC Press).

    Courteous comments are welcome for consideration. First published on https://storageioblog.com any reproduction in whole, in part, with changes to content, without source attribution under title or without permission is forbidden.

    All Comments, (C) and (TM) belong to their owners/posters, Other content (C) Copyright 2006-2023 Server StorageIO(R) and UnlimitedIO. All Rights Reserved.

    Posted on

    VMware vSAN V6.6 Part V (vSAN evolution and summary)

    server storage I/O trends

    VMware vSAN V6.6 Part V (vSAN evolution and summary)

    In case you missed it, VMware announced vSAN v6.6 hyper-converged infrastructure (HCI) software defined data infrastructure solution. This is the fifth of a five-part series about VMware vSAN V6.6. View Part I here, Part II (just the speeds feeds please) is located here, part III (reducing cost and complexity) found here, part IV (scaling ROBO and data centers today) located here.

    VMware vSAN 6.6
    Image via VMware

    For those who are not aware, vSAN is a VMware virtual Storage Area Network (e.g. vSAN) that is software-defined, part of being a software-defined data infrastructure (SDDI) and software-defined data center (SDDC). Besides being software-defined vSAN is HCI combining compute (server), I/O networking, storage (space and I/O) along with hypervisors, management, and other tools.

    How has vSAN (formerly referred to as VSAN) Evolved

    A quick recap of the VMware vSAN progression which first appeared as part of vSphere 5.5. (e.g. vSAN 5.5 can be thought of 1.0 in some ways) consists of several releases. Since vSAN is tightly integrated with VMware vSphere along with associated management tools, there is a correlation between enhancements to the underlying hypervisor, and added vSAN functionality. Keep in mind sometimes by seeing where something has been, helps to view where going.

    Previous vSAN enhancements include:

    • 5.5 Hybrid (mixed HDD and flash)
    • 6.2 (2016) All flash (e.g. AFA) versions included data footprint reduction (DFR) technologies such as compression and dedupe along with performance Quality of Service (QoS) enhancements.
    • 6.5 Cross Cloud functionality including the announcement of container support, cloud-native apps, as well as upcoming vSphere, vSAN, NSX and other VMware software-defined data center (SDDC) and software-defined data infrastructure (SDDI) technology running natively on AWS (not on EC2) cloud infrastructure.
    • 6.6 Modern data infrastructure flexibility, scalability, resiliency, extensibility including performance, availability, capacity and economics (PACE).

    V5.5

    • Distributed RAID
    • Per-VM SPBM
    • Set and change FTT via policy
    • In-kernel hyper-convergence engine
    • RVC and Observer

    V6.0

    • All-flash architecture
    • Perf improvements (4xIOPS)
    • 64-node support
    • High-density storage blades
    • Fault domain awareness
    • Scalable snapshots and clones
    • Disk enclosure management

    V6.1

    • Windows Failover Clustering
    • Oracle RAC support
    • HW checksum and encryption
    • 2-node ROBO mode
    • UltraDIMM and NVMe support
    • Stretch clusters
    • 5 min RPO (vSphere Rep)
    • SMP-FT support
    • Health Check, vROps, Log Insight

    V6.2

    • IPv6 support
    • Software checksum
    • Nearline dedupe and compression on all-flash
    • Erasure coding on all-flash
    • QoS IOPS limits
    • Performance monitoring service

    V6.5

    • iSCSI
    • 2-Node direct connect
    • PowerCLI
    • Public APIs and SDK
    • 512e support
    • All-Flash to all editions

    Where to Learn More

    The following are additional resources to find out more about vSAN and related technologies.

    What this all means, wrap up and summary

    VMware continues to extend the software-defined data center (SDDC) and Software-Defined Data Infrastructure (SDDI) ecosystem with vSAN to address the needs from smaller SMB and ROBO environments to larger SME and enterprise workloads. To me a theme with V6.6 is expanding resiliency, scalability with stability to expand vSAN upmarket as well as into new workloads similar to how vSphere has evolved.

    With each new release, vSAN is increasing its feature, functionality, resiliency and extensiveness associated with traditional storage and non-CI or HCI solutions. Overall a good set of enhancements as vSAN continues its evolution looking back just a few years ago, to where it is today and will be in the future. If you have not looked at vSAN recently, take some time beyond reading this piece to learn some more.

    Ok, nuff said (for now…).

    Cheers
    Gs

    Greg Schulz – Microsoft MVP Cloud and Data Center Management, VMware vExpert (and vSAN). Author Cloud and Virtual Data Storage Networking (CRC Press), The Green and Virtual Data Center (CRC Press), Resilient Storage Networks (Elsevier) and twitter @storageio. Watch for the Spring 2017 release of his new book “Software-Defined Data Infrastructure Essentials” (CRC Press).

    Courteous comments are welcome for consideration. First published on https://storageioblog.com any reproduction in whole, in part, with changes to content, without source attribution under title or without permission is forbidden.

    All Comments, (C) and (TM) belong to their owners/posters, Other content (C) Copyright 2006-2023 Server StorageIO(R) and UnlimitedIO. All Rights Reserved.

    Posted on

    Data Infrastructure IT Industry Related Resource Links K to O

    Data Infrastructure IT Industry Related Resource Links K to O

    IT Data Center and Data Infrastructure Industry Resources

    Updated 2/20/2018

    Following are some useful Data Infrastructure IT Industry Resource Links K to O to cloud, virtual and traditional IT data infrastructure related web sites. The data infrastructure environment (servers, storage, IO and networking, hardware, software, services, virtual, container and cloud) is rapidly changing. You may encounter a missing URL, or a URL that has changed. This list is updated on a regular basis to reflect changes (additions, changes, and retirement).

    Disclaimer and note: URL’s submitted for inclusion on this site will be reviewed for consideration and to be in generally accepted good taste in regards to the theme of this site.

    Best effort has been made to validate and verify the data infrastructure URLs that appear on this page and web site however they are subject to change. The author and/or maintainer(s) of this page and web site make no endorsement to and assume no responsibility for the URLs and their content that are listed on this page.

    Software Defined Data Infrastructure Essentials Book SDDC

    Send an email note to info at storageio dot com that includes company name, URL, contact name, title and phone number along with a brief 40 character description to be considered for addition to the above data infrastructure list, or, to be removed. Note that Server StorageIO and UnlimitedIO LLC (e.g. StorageIO) does not sell, trade, barter, borrow or share your contact information per our Privacy and Disclosure policy. View related data infrastructure Server StorageIO content here, and signup for our free newsletter here.

    Links A-E
    Links F-J
    Links K-O
    Links P-T
    Links U-Z
    Other Links

    • kaminario.com    Scale out high performance database server
    • kanbox.com    Chineese cloud provider
    • kaseya.com    IT Infrastructure resource management tools
    • kashya.com    Data Protection Solutions (Bought by EMC)
    • kastenchase.com    Data and information security solutions
    • kazeon.com    eDiscovery, search, indexing, classification (Bought by EMC)
    • kcura.com    eDiscovery tools
    • Kerstor.com    Cloud storage
    • kickfire.com    Business analytics tools
    • kineticd.com    Storage and data protection solutions
    • Kingston.com    Memory manufacturer
    • KLSecurity.com    Data protection solutions
    • komnetworks.com    Archiving solutions
    • k-par.com    Archiving solutions
    • ksplice.com    Linux management tools
    • Kubisys.com    Virtualization management tools
    • KVH Co. Ltd.    AWS connect parter, Hosting/cloud/access services
    • kvsinc.com    Email archiving and compliance software
    • lacie.com    Consumer, SOHO and SMB NAS and DAS storage (Bought by Seagate)
    • laconicsecurity.com    Cloud security and storage
    • lampertz.com    Environmental and data center protection
    • laurustech.com    Managed services provider
    • lecroy.com    Analyzers, probes and diagnostics
    • lefthandnetworks.com    iSCSI clustered storage (Bought by HP)
    • legato.com    Storage management software (Bought by EMC)
    • Lenovo   Servers, storage, workstations
    • Level 3 Communications    AWS connect parter, Hosting/cloud/access services
    • lexar.com    Flash memory
    • liebert.com    Data center power and cooling systems (Bought by Emerson)
    • Lightower    AWS connect parter, Hosting/cloud/access services
    • lightsand.com    SAN connectivity
    • likewise.com    Open backup software for macs/Linux/windows
    • liquidcomputing.com    High density servers
    • liquidcoolsolutions.com    Liquid cooled servers
    • Liquidware Labs   Desktop management solutions
    • livedrive.com    Cloud storage and backup
    • www.liveoffice.com    Cloud and Email hosting
    • LiveVault.com    Online cloud backup service (Bought by IronMountain)
    • locknet-inc.com    Security and network management
    • Lockstep.com    Backup and data protection tools
    • logicube.com    Hard drive copy tools
    • LoginVSI   VDI Testing solutions
    • losttapes.org    Portal pertaining to lost magnetic tape information
    • lsi.com    Storage and networking chips and controllers (Bought by Avago)
    • lto-technology.com    Information about LTO tape media
    • lucent.com    Networking components
    • lumigent.com    Compliance management tools
    • luminex.com    S390 IBM Mainframe to open systems gateways
    • luxtera.com    High speed network and storage interconnects
    • m5data.com    VAR
    • MagePlace Backup    Backup and data protection solutions
    • Maginatics.com    Storage for virtual environments
    • magma.com    PCIe and storage solutions
    • mainline.com    VAR
    • Maintech    Infrastructure services
    • maintech.com    IT Servers and solutions
    • Maldivica    Cloud and object storage gateway
    • ManageEngine    DCIM, data center and networking management
    • maponics.com    Mapping data solutions
    • MAPR   Hadoop and Big Data Tools

    • maranti.com    Storage systems
    • marconi.com    Networking equipment
    • marvell.com    Data storage components
    • Masergy    AWS connect parter, Hosting/cloud/access services
    • Mathon.com    eDiscovery
    • maxava.com    HA tools for IBM iSeries
    • maxell.com    Data storage media
    • maxim-ic.com    Data storage components and solutions
    • maxiscale.com    Web infrastructure scale out file system
    • Maxta   Virtualization storage
    • maxtor.com    Disk drives (Bought by Seagate)
    • maxxan.com    Storage systems (Now Ciphermax)
    • mcdata.com    Switches, WAN gateways, software (Bought by Brocade)
    • mediagateusa.com    HD Video streaming appliance
    • Meditech.com    Medical information technology software
    • Megaport    AWS connect parter, Hosting/cloud/access services
    • mellanox.com    Ethernet and InfiniBand technology
    • Memeo.com    Data and content management tools
    • Mendocino.com    CDP and data protection (Missing in Action)
    • metalogix.net    Sharepoint archiving solutions
    • methode.com    Storage networking transceivers
    • mezeo.com    Cloud storage management tools
    • micron.com    SSD storage solutions
    • micronet.com    Storage solutions
    • microsoft.com    Hyper-V virtualizaiton, Windows Storage Server, Azure Cloud, Storsimple, SkyDrive (aka OneDrive) and more
    • midwave.com    Var
    • Mimecast email management including archiving
    • Mimosasystems.com    Email protection and archiving (Bought by Iron Mountain)
    • mindtree.com    Testing services
    • Mirantis    OpenStack tools, downloads, service and support
    • Miray HDClone    Storage clone and data protection tools
    • mirra.com    SMB storage sharing
    • mobiuspartners.com    VAR
    • Modius    DCIM power, cooling and monitoring
    • moka5.com    VDI tools
    • MongoDB    Open source document optimized database
    • Monitis.com    IT Monitoring and services (applications, systems, clouds and more)
    • Monosphere.com    Storage planning and usage software (Bought by Quest)
    • moonwalk.com    HSM, ILM and data management software
    • morphlabs.com    Dense converged server platforms
    • mosaictec.com    Value added reseller (VAR)
    • mosys.com    High density memory components
    • mpstor.com    Cloud storage and orchestration software
    • msiinet.com    VAR
    • mti.com    European VAR
    • mtron.net    Solid state storage devices
    • My Digital SSD    SSD solutions
    • NAKIVO    Backup and data protection tools
    • napatech.com    Network tools and analysis
    • naspa.org    System administrator’s user group
    • nasuni.com    Cloud storage access appliance
    • ncino.com    Banking and financial deployment platform
    • ncipher.com    Data protection and security solutions (Bought by Thales)
    • ncompass-inc.com    VAR and services firm
    • ncr.com    Servers and storage solutions
    • ndci.com    Data conversion services
    • ndmp.org    Trade organization for NDMP backup protocol
    • neartek.com    VTL software (Bought by EMC)
    • nebulassolutions.com    Security and data protection
    • NEC.com    Servers and storage
    • neopathnetworks.com    Network file management solutions (Bought by Cisco)
    • neoscale.com    Storage networking security (Assets Bought by nCipher)
    • nephoscale.com    Cloud and object storage
    • NeptunesCloud.net    Cloud IaaS solutions
    • www.neptuny.com    Performance and capacity planning tools
    • nerc.com    North American Electrical Reliability Council
    • netcelera.com    WAN File system caching and acceleration
    • netcomm.com.au    Broadband service provider
    • netdirectsystems.com    VAR
    • neterion.com    High performance iSCSI and Ethernet 10Gb technology Bought by Exar)
    • netex.com    IP compression and channel extension
    • netezza.com    Big Data – Data warehouse storage solutions (Bought by IBM)
    • Netgear.com    SOHO and SMB storage and networking
    • NetIQ    Data center, security, identify and data protection management
    • netlist.com    Memory solutions
    • netoptics.com    Network monitoring
    • netronome.com    Network and I/O optimization technology
    • netspi.com    Network security and digital forensics
    • networkappliance.com    Storage sub-systems, management software
    • networkgeneral.com    Network and application monitoring
    • networkinstruments.com    Network test and diagnostic and performance monitoring
    • netwrix.com    Enterprise systems management tools
    • netxen.com    High performance 10Gb Ethernet chips and NICs
    • neuwingenergy.com    Energy management organization
    • neuxpower.com    File compression and data reduction
    • Neverfailgroup.com    HA software
    • nevex.com    Caching and application acceleration
    • newboundary.com    IT policy management and IRM tools
    • newisys.com    Storage enclosures
    • newrelic.com    Web, cloud and application management
    • nexenta.com    ZFS based storage management solutions
    • nexgenstorage.com    Storage with PCIe flash card
    • nexsan.com    SAS/SATA and MAID storage subsystems (Bought by Imaiton)
    • nextio.com    SSD and application acceleration solutions
    • NexusMN / Computex    VAR (e.g. Formerly Nexus MN and Stratos – now Computex)
    • nfpa.org    National Fire Protection Association
    • nicira.com    Software defined networking and IOV (Bought by VMware)
    • nimblestorage.com    Converged iSCSI SAN, backup and DR
    • nimbula.com    Cloud and application orchestration management tools
    • Nimbusdata.com    iSCSI storage
    • nirvanix.com    Cloud storage provider (Ceased operations)
    • njvc.com    Cloud and technology service provider
    • Nylte    DCIM software tools
    • noggin.intel.com/rr/    Intel Recommended Reading List
    • noliosoft.com    Cloud application management tools
    • Norlight.com    Data communications and services
    • nortel.com    Networking products
    • nortelnetworks.com    Optical networking
    • northernsoft.com    Medical software
    • novastor.com    Backup and cloud data protection tools
    • Novell.com    Server software vendor (Bought by Attachmate)
    • Novuscg.com    Storage management and services (Bought by IBM)
    • Nomura Research Institute (NRI)    AWS connect parter, Hosting/cloud/access services
    • nsic.org    National Storage Industry Consortium
    • ntp.com    Storage Management Software
    • NTT Communications Corporation    AWS connect parter, Hosting/cloud/access services
    • numarasoftware.com    IT Resource management, asset tracking tools
    • numonyx.com    SSD memory solutions
    • nutanix.com    Converged server and storage VM platform
    • nvelo.com    Caching IO performance tools
    • nvidia.com    Graphics and visualization tools
    • ocarinanetworks.com    Data reduction and compression tools (Bought by Dell)
    • ocztechnology.com    SSD drives and PCIe cards (Bought by Toshiba after bankruptcy)
    • offsitebackups.com    Online and cloud backup solutions
    • olixir.com    Removable storage for backup and data protection
    • omneon.com    Archiving and fixed content storage solutions
    • onapp.com    Cloud, CDN and storage tools
    • onaro.com    Storage and Storage Network Management (Bought by NetApp)
    • onlinebackupsearch.com    Various online backup reviews
    • oblinecourses.com    Various online education courses for various topics
    • onpathtech.com    Physical layer networking
    • onstor.com    Clustered NAS storage including NAS gateways (Bought by LSI)
    • Ontrack.com    Email and data protection software
    • OO Software   Windows management and data protection tools
    • opalis.com    Virtual data center management tools
    • OpenCompute   OpenCompute consortium
    • opendatacenteralliance.org    Open Data Center Alliance
    • open-e.com    iSCSI and NAS storage
    • Open.IO    Application aware object and bulk scale out software defined storage
    • openfabrics.org    Open Fabric Alliance
    • OpenNebula    Open source cloud software
    • opennetworking.org    Open Networking Foundation
    • OpensourceSystems.com    Data storage solutions
    • OpenStack   Open source cloud compute and storage software
    • opnet.com    Application and network performance management
    • Opsware.com    Network and storage management (HP)
    • Optica Tech.    Server and storage connectivity including FICON
    • opticatech.com    Mainframe and ESCON encryption
    • oracle.com    Data management software, hardware and services (Bought Sun/STK and others)
    • Ortera.com    Performance monitoring and management
    • OSNEXUS   Quantstor ZFS based Storage management solutions
    • Outsource Data Recovery   Data Recovery services
    • overlandstorage.com    Tape and backup, data retention, NAS solutions
    • owncloud.org    Cloud infrastructure tools

    Where To Learn More

    View additional NAS, NVMe, SSD, NVM, SCM, Data Infrastructure and HDD related topics via the following links.

    Additional learning experiences along with common questions (and answers), as well as tips can be found in Software Defined Data Infrastructure Essentials book.

    Software Defined Data Infrastructure Essentials Book SDDC

    What This All Means

    Visit the following additional data infrastructure and IT data center related links.

    Links A-E
    Links F-J
    Links K-O
    Links P-T
    Links U-Z
    Other Links

    Ok, nuff said, for now.

    Gs

    Greg Schulz – Microsoft MVP Cloud and Data Center Management, VMware vExpert 2010-2017 (vSAN and vCloud). Author of Software Defined Data Infrastructure Essentials (CRC Press), as well as Cloud and Virtual Data Storage Networking (CRC Press), The Green and Virtual Data Center (CRC Press), Resilient Storage Networks (Elsevier) and twitter @storageio. Courteous comments are welcome for consideration. First published on https://storageioblog.com any reproduction in whole, in part, with changes to content, without source attribution under title or without permission is forbidden.

    All Comments, (C) and (TM) belong to their owners/posters, Other content (C) Copyright 2006-2024 Server StorageIO and UnlimitedIO. All Rights Reserved. StorageIO is a registered Trade Mark (TM) of Server StorageIO.

    Posted on

    Six plus data center software defined management dashboards tools

    Software defined data infrastructure management insight tools

    server storage I/O trends

    Updated 1/17/2018

    Managing data infrastructures involves using software defined management dashboards tools. Recently I found in my inbox a link to a piece 6 Dashboards for Managing Every Modern Data Center that caught my attention. I was hoping to see who the six different datacenter technologies, dashboard solutions tools were instead of finding list of dashboard considerations for modern data centers and data infrastructures.

    Turns out the piece was nothing more than a list of six items featured as part of the vendors (Sunbird) piece about what to look for in a dashboard (e.g. their product). Sure there were some of the usual key performance indicator (KPI) associated with or related to IT Service Management (ITSM), Data Center Infrastructure (Insight/Information) Management (DCIM), Configuration and Change management databases (CMDB), availability, capacity and Performance Management Databases (PMDB) among others.

    • Space
    • Inventory
    • Connectivity
    • Change
    • Environment
    • Power

    Dashboard Discussions

    Keep in mind however that there are many different types of dashboards (and consoles), some are active along with analytics including correlation, others are passive simply displaying. The focus area also various from physical data center facilities, to applications, to data infrastructures or components such as servers, storage, I/O networks, clouds, virtual, containers among others modern data centers.

    Data Infrastructures and SDDI, SDDC, SDI
    Data Infrastructures (hardware, software, services, servers, storage, I/O and networks)

    This is where some context comes into play as there are different types of dashboards for various audience, technology and focus areas (e.g. domains) across data infrastructure (and other entities). For example do a google search of “dashboard” and see what appears, or “IT dashboard”, “data center dashboard” vs. “datacenter dashboard” among others.

    Additional KPIs include:

    • Performance, availability, Capacity and Economic (PACE) attributes
    • Service Level Objectives (SLO), Service Level Agreements (SLAs)
    • Recovery Time Objectives (RTO), Recovery Point Objectives (SLO)
    • IT Service Management (ITSM) and Data Center Infrastructure Management (DCIM)
    • Configuration and Change Management (e.g. things part of CMDB)
    • Performance, availability and capacity (e.g. things part of PMDB)
    • Various focus and layers, cross domain functionality views
    • Costs management including subscriptions, licenses and others

    IT Data Center and Data Infrastructure Dashboard Options

    For those of you who have made it this far, while not a comprehensive list, the following are some examples of vendors, services or solutions that either are, or have an association with data center, as well as data infrastructure management. Some dashboards or tools are homogenous in that they only work within a given area of focus such as particular cloud, service provider, vendor or solution set. Others are heterogeneous or federated working across different services, solutions, vendors and domain focus areas. Think of these as software defined management (SDM), or, software defined data infrastructure (SDDI) management, software defined data center (SDDC) management among other variations for the modern information factory.

    There is a mix of tools that run on site (e.g. on premise) or via cloud services (e.g. manager your on site from the cloud). Likewise, some are for fee, others subscription and some are open source. In addition some of the tools are turnkey while others are do it yourself (DiY) or allow you to customize. Also keep in mind that depending on what your tradecraft (skills, experience, expertise) interest area is, these may or may not be applicable to you, while relevant to others. For example some such as Spiceworks tend to be more helpdesk focused while others on other data center or data infrastructure areas.

    There are dashboards for or from AWS, Canonical (Ubuntu), Dell including EMC, Google, HPE, IBM, Microsoft System Center and Azure, NetApp, OpenStack, Oracle, Rackspace, Redhat, Rightscale, Servicenow, Softlayer, Suse and VMware among others.

    Blue Medora (various data infrastructure monitoring)
    Cloudkitty (open source cloud rating and chargeback)
    Collectd (data infrastructure collection and monitoring)
    cPanel and whm (web and hosting dashboards)
    data infrastructure sddi cpanel

    Dashbuilder (customize your dashboard)
    Datadog (super easy to get access, download, install, configure and use)
    Domo (various data infrastructure monitoring tools)
    Extrahop (still waiting to be able to download and try their bits vs. watching a demo)
    Firescope (data infrastructure insight and awareness)
    Freezer (open source dashboard tools)
    Komprise (interesting solution, would like try, however lots of gated material)
    Nagios (data infrastructure monitoring)
    Openit (data infrastructure tracking, report, monitoring)
    Opvizor (data infrastructure monitoring and reporting)

    storageio datadog dashboard

    Panorama9 (various data infrastructure monitoring and reporting)
    Quest (various tools)
    Redhat Cloudforms (openstack and cloud management)
    Rrdtools (data collection, logging and display)
    Sisense (insight and awareness tools)
    Solarwinds Server Application Monitor (SAM) among other tools
    Teamquest (various monitoring, management, capacity planning tools)
    Turbomomic (software defined data infrastructure insight tools)
    Virtual Instruments (various monitoring and insight awareness along with analytics)

    In addition to the above, there are tools such as Splunk among others that also provide insight and awareness to help avoid flying blind while managing your data center or data infrastructure.

    Where to learn more

    Learn more via the following links.

  • Data Infrastructure Primer and Overview (Its Whats Inside The Data Center)
  • E2E Awareness and insight for IT environments
  • Server and Storage I/O Benchmarking and Performance Resources
  • Data Center Infrastructure Management (DCIM) and IRM
  • The Value of Infrastructure Insight – Enabling Informed Decision Making
  • More storage and IO metrics that matter
  • Whats a data infrastructure?

    • Additional learning experiences along with common questions (and answers), as well as tips can be found in Software Defined Data Infrastructure Essentials book.

    Software Defined Data Infrastructure Essentials Book SDDC

    What this all means

    Without insight and awareness you are flying blind, how can you make informed decisions about your information factory, data infrastructures, data center along with applications. There are different focus areas for various audiences up and down the stack layers in data infrastructures and data centers. Key is having insight and awareness including knowing what are some different tool options.

    Ok, nuff said, for now.

    Gs

    Greg Schulz – Microsoft MVP Cloud and Data Center Management, VMware vExpert 2010-2017 (vSAN and vCloud). Author of Software Defined Data Infrastructure Essentials (CRC Press), as well as Cloud and Virtual Data Storage Networking (CRC Press), The Green and Virtual Data Center (CRC Press), Resilient Storage Networks (Elsevier) and twitter @storageio. Courteous comments are welcome for consideration. First published on https://storageioblog.com any reproduction in whole, in part, with changes to content, without source attribution under title or without permission is forbidden.

    All Comments, (C) and (TM) belong to their owners/posters, Other content (C) Copyright 2006-2024 Server StorageIO and UnlimitedIO. All Rights Reserved. StorageIO is a registered Trade Mark (TM) of Server StorageIO.

    Posted on

    Which Enterprise HDD for Content Server Platform

    Which Enterprise HDD to use for a Content Server Platform

    data infrastructure HDD server storage I/O trends

    Updated 1/23/2018

    Which enterprise HDD to use with a content server platform?

    Insight for effective server storage I/O decision making
    Server StorageIO Lab Review

    Which enterprise HDD to use for content servers

    This post is the first in a multi-part series based on a white paper hands-on lab report I did compliments of Equus Computer Systems and Seagate that you can read in PDF form here. The focus is looking at the Equus Computer Systems (www.equuscs.com) converged Content Solution platforms with Seagate Enterprise Hard Disk Drive (HDD’s). I was given the opportunity to do some hands-on testing running different application workloads with a 2U content solution platform along with various Seagate Enterprise 2.5” HDD’s handle different application workloads. This includes Seagate’s Enterprise Performance HDD’s with the enhanced caching feature.

    Issues And Challenges

    Even though Non-Volatile Memory (NVM) including NAND flash solid state devices (SSDs) have become popular storage for use internal as well as external to servers, there remains the need for HDD’s Like many of you who need to make informed server, storage, I/O hardware, software and configuration selection decisions, time is often in short supply.

    A common industry trend is to use SSD and HDD based storage mediums together in hybrid configurations. Another industry trend is that HDD’s continue to be enhanced with larger space capacity in the same or smaller footprint, as well as with performance improvements. Thus, a common challenge is what type of HDD to use for various content and application workloads balancing performance, availability, capacity and economics.

    Content Applications and Servers

    Fast Content Needs Fast Solutions

    An industry and customer trend are that information and data are getting larger, living longer, as well as there is more of it. This ties to the fundamental theme that applications and their underlying hardware platforms exist to process, move, protect, preserve and serve information.

    Content solutions span from video (4K, HD, SD and legacy streaming video, pre-/post-production, and editing), audio, imaging (photo, seismic, energy, healthcare, etc.) to security surveillance (including Intelligent Video Surveillance [ISV] as well as Intelligence Surveillance and Reconnaissance [ISR]). In addition to big fast data, other content solution applications include content distribution network (CDN) and caching, network function virtualization (NFV) and software-defined network (SDN), to cloud and other rich unstructured big fast media data, analytics along with little data (e.g. SQL and NoSQL database, key-value stores, repositories and meta-data) among others.

    Content Solutions And HDD Opportunities

    A common theme with content solutions is that they get defined with some amount of hardware (compute, memory and storage, I/O networking connectivity) as well as some type of content software. Fast content applications need fast software, multi-core processors (compute), large memory (DRAM, NAND flash, SSD and HDD’s) along with fast server storage I/O network connectivity. Content-based applications benefit from having frequently accessed data as close as possible to the application (e.g. locality of reference).

    Content solution and application servers need flexibility regarding compute options (number of sockets, cores, threads), main memory (DRAM DIMMs), PCIe expansion slots, storage slots and other connectivity. An industry trend is leveraging platforms with multi-socket processors, dozens of cores and threads (e.g. logical processors) to support parallel or high-concurrent content applications. These servers have large amounts of local storage space capacity (NAND flash SSD and HDD) and associated I/O performance (PCIe, NVMe, 40 GbE, 10 GbE, 12 Gbps SAS etc.) in addition to using external shared storage (local and cloud).

    Where To Learn More

    Additional learning experiences along with common questions (and answers), as well as tips can be found in Software Defined Data Infrastructure Essentials book.

    Software Defined Data Infrastructure Essentials Book SDDC

    What This All Means

    Fast content applications need fast content and flexible content solution platforms such as those from Equus Computer Systems and HDD’s from Seagate. Key to a successful content application deployment is having the flexibility to hardware define and software defined the platform to meet your needs. Just as there are many different types of content applications along with diverse environments, content solution platforms need to be flexible, scalable and robust, not to mention cost effective.

    Continue reading part two of this multi-part series here where we look at how and what to test as well as project planning.

    Ok, nuff said, for now.

    Gs

    Greg Schulz – Microsoft MVP Cloud and Data Center Management, VMware vExpert 2010-2017 (vSAN and vCloud). Author of Software Defined Data Infrastructure Essentials (CRC Press), as well as Cloud and Virtual Data Storage Networking (CRC Press), The Green and Virtual Data Center (CRC Press), Resilient Storage Networks (Elsevier) and twitter @storageio. Courteous comments are welcome for consideration. First published on https://storageioblog.com any reproduction in whole, in part, with changes to content, without source attribution under title or without permission is forbidden.

    All Comments, (C) and (TM) belong to their owners/posters, Other content (C) Copyright 2006-2024 Server StorageIO and UnlimitedIO. All Rights Reserved. StorageIO is a registered Trade Mark (TM) of Server StorageIO.

    Posted on

    How many I/O iops can flash SSD or HDD do?

    How many i/o iops can flash ssd or hdd do with vmware?

    sddc data infrastructure Storage I/O ssd trends

    Updated 2/10/2018

    A common question I run across is how many I/O iopsS can flash SSD or HDD storage device or system do or give.

    The answer is or should be it depends.

    This is the first of a two-part series looking at storage performance, and in context specifically around drive or device (e.g. mediums) characteristics across HDD, HHDD and SSD that can be found in cloud, virtual, and legacy environments. In this first part the focus is around putting some context around drive or device performance with the second part looking at some workload characteristics (e.g. benchmarks).

    What about cloud, tape summit resources, storage systems or appliance?

    Lets leave those for a different discussion at another time.

    Getting started

    Part of my interest in tools, metrics that matter, measurements, analyst, forecasting ties back to having been a server, storage and IO performance and capacity planning analyst when I worked in IT. Another aspect ties back to also having been a sys admin as well as business applications developer when on the IT customer side of things. This was followed by switching over to the vendor world involved with among other things competitive positioning, customer design configuration, validation, simulation and benchmarking HDD and SSD based solutions (e.g. life before becoming an analyst and advisory consultant).

    Btw, if you happen to be interested in learn more about server, storage and IO performance and capacity planning, check out my first book Resilient Storage Networks (Elsevier) that has a bit of information on it. There is also coverage of metrics and planning in my two other books The Green and Virtual Data Center (CRC Press) and Cloud and Virtual Data Storage Networking (CRC Press). I have some copies of Resilient Storage Networks available at a special reader or viewer rate (essentially shipping and handling). If interested drop me a note and can fill you in on the details.

    There are many rules of thumb (RUT) when it comes to metrics that matter such as IOPS, some that are older while others may be guess or measured in different ways. However the answer is that it depends on many things ranging from if a standalone hard disk drive (HDD), Hybrid HDD (HHDD), Solid State Device (SSD) or if attached to a storage system, appliance, or RAID adapter card among others.

    Taking a step back, the big picture

    hdd image
    Various HDD, HHDD and SSD’s

    Server, storage and I/O performance and benchmark fundamentals

    Even if just looking at a HDD, there are many variables ranging from the rotational speed or Revolutions Per Minute (RPM), interface including 1.5Gb, 3.0Gb, 6Gb or 12Gb SAS or SATA or 4Gb Fibre Channel. If simply using a RUT or number based on RPM can cause issues particular with 2.5 vs. 3.5 or enterprise and desktop. For example, some current generation 10K 2.5 HDD can deliver the same or better performance than an older generation 3.5 15K. Other drive factors (see this link for HDD fundamentals) including physical size such as 3.5 inch or 2.5 inch small form factor (SFF), enterprise or desktop or consumer, amount of drive level cache (DRAM). Space capacity of a drive can also have an impact such as if all or just a portion of a large or small capacity devices is used. Not to mention what the drive is attached to ranging from in internal SAS or SATA drive bay, USB port, or a HBA or RAID adapter card or in a storage system.

    disk iops
    HDD fundamentals

    How about benchmark and performance for marketing or comparison tricks including delayed, deferred or asynchronous writes vs. synchronous or actually committed data to devices? Lets not forget about short stroking (only using a portion of a drive for better IOP’s) or even long stroking (to get better bandwidth leveraging spiral transfers) among others.

    Almost forgot, there are also thick, standard, thin and ultra thin drives in 2.5 and 3.5 inch form factors. What’s the difference? The number of platters and read write heads. Look at the following image showing various thickness 2.5 inch drives that have various numbers of platters to increase space capacity in a given density. Want to take a wild guess as to which one has the most space capacity in a given footprint? Also want to guess which type I use for removable disk based archives along with for onsite disk based backup targets (compliments my offsite cloud backups)?

    types of disks
    Thick, thin and ultra thin devices

    Beyond physical and configuration items, then there are logical configuration including the type of workload, large or small IOPS, random, sequential, reads, writes or mixed (various random, sequential, read, write, large and small IO). Other considerations include file system or raw device, number of workers or concurrent IO threads, size of the target storage space area to decide impact of any locality of reference or buffering. Some other items include how long the test or workload simulation ran for, was the device new or worn in before use among other items.

    Tools and the performance toolbox

    Then there are the various tools for generating IO’s or workloads along with recording metrics such as reads, writes, response time and other information. Some examples (mix of free or for fee) include Bonnie, Iometer, Iorate, IOzone, Vdbench, TPC, SPC, Microsoft ESRP, SPEC and netmist, Swifttest, Vmark, DVDstore and PCmark 7 among many others. Some are focused just on the storage system and IO path while others are application specific thus exercising servers, storage and IO paths.

    performance tools
    Server, storage and IO performance toolbox

    Having used Iometer since the late 90s, it has its place and is popular given its ease of use. Iometer is also long in the tooth and has its limits including not much if any new development, never the less, I have it in the toolbox. I also have Futremark PCmark 7 (full version) which turns out has some interesting abilities to do more than exercise an entire Windows PC. For example PCmark can use a secondary drive for doing IO to.

    PCmark can be handy for spinning up with VMware (or other tools) lots of virtual Windows systems pointing to a NAS or other shared storage device doing real world type activity. Something that could be handy for testing or stressing virtual desktop infrastructures (VDI) along with other storage systems, servers and solutions. I also have Vdbench among others tools in the toolbox including Iorate which was used to drive the workloads shown below.

    What I look for in a tool are how extensible are the scripting capabilities to define various workloads along with capabilities of the test engine. A nice GUI is handy which makes Iometer popular and yes there are script capabilities with Iometer. That is also where Iometer is long in the tooth compared to some of the newer generation of tools that have more emphasis on extensibility vs. ease of use interfaces. This also assumes knowing what workloads to generate vs. simply kicking off some IOPs using default settings to see what happens.

    Another handy tool is for recording what’s going on with a running system including IO’s, reads, writes, bandwidth or transfers, random and sequential among other things. This is where when needed I turn to something like HiMon from HyperIO, if you have not tried it, get in touch with Tom West over at HyperIO and tell him StorageIO sent you to get a demo or trial. HiMon is what I used for doing start, stop and boot among other testing being able to see IO’s at the Windows file system level (or below) including very early in the boot or shutdown phase.

    Here is a link to some other things I did awhile back with HiMon to profile some Windows and VDI activity test profiling.

    What’s the best tool or benchmark or workload generator?

    The one that meets your needs, usually your applications or something as close as possible to it.

    disk iops
    Various 2.5 and 3.5 inch HDD, HHDD, SSD with different performance

    Where To Learn More

    View additional NAS, NVMe, SSD, NVM, SCM, Data Infrastructure and HDD related topics via the following links.

    Additional learning experiences along with common questions (and answers), as well as tips can be found in Software Defined Data Infrastructure Essentials book.

    Software Defined Data Infrastructure Essentials Book SDDC

    What This All Means

    That depends, however continue reading part II of this series to see some results for various types of drives and workloads.

    Ok, nuff said, for now.

    Gs

    Greg Schulz – Microsoft MVP Cloud and Data Center Management, VMware vExpert 2010-2017 (vSAN and vCloud). Author of Software Defined Data Infrastructure Essentials (CRC Press), as well as Cloud and Virtual Data Storage Networking (CRC Press), The Green and Virtual Data Center (CRC Press), Resilient Storage Networks (Elsevier) and twitter @storageio. Courteous comments are welcome for consideration. First published on https://storageioblog.com any reproduction in whole, in part, with changes to content, without source attribution under title or without permission is forbidden.

    All Comments, (C) and (TM) belong to their owners/posters, Other content (C) Copyright 2006-2024 Server StorageIO and UnlimitedIO. All Rights Reserved. StorageIO is a registered Trade Mark (TM) of Server StorageIO.
