NVMe Need for Performance Speed Performance

server storage I/O trends
Updated 1/12/2018

This is the third in a five-part mini-series providing a primer and overview of NVMe. View companion posts and more material at www.thenvmeplace.com.

How fast is NVMe?

It depends! Generally speaking NVMe is fast!

However fast interfaces and protocols also need fast storage devices, adapters, drivers, servers, operating systems and hypervisors as well as applications that drive or benefit from the increased speed.

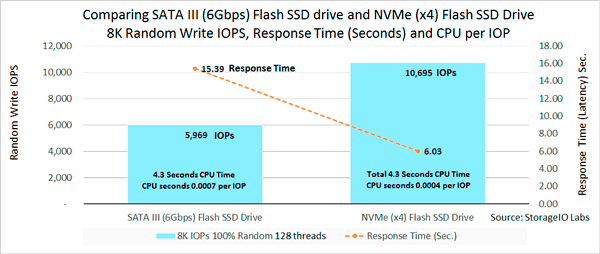

A server storage I/O example is in figure 5 where a 6 Gbps SATA NVM flash SSD (left) is shown with an NVMe 8639 (x4) drive that were directly attached to a server. The workload is 8 Kbyte sized random writes with 128 threads (workers) showing results for IOPs (solid bar) along with response time (dotted line). Not surprisingly the NVMe device has a lower response time and a higher number of IOPs. However also note how the amount of CPU time used per IOP is lower on the right with the NVMe drive.

NVMe storage I/O performance
Figure 5 6 Gbps SATA NVM flash SSD vs. NVMe flash SSD

While many people are aware or learning about the IOP and bandwidth improvements as well as the decrease in latency with NVMe, something that gets overlooked is how much less CPU is used. If a server is spending time in wait modes that can result in lost productivity, by finding and removing the barriers more work can be done on a given server, perhaps even delaying a server upgrade.

In figure 5 notice the lower amount of CPU used per work activity being done (e.g. I/O or IOP) which translates to more effective resource use of your server. What that means is either doing more work with what you have, or potentially delaying a CPU server upgrade, or, using those extra CPU cycles to power software defined storage management stacks including erasure coding or advanced parity RAID, replication and other functions.

Table 1 shows relative server I/O performance of some NVM flash SSD devices across various workloads. As with any performance, the comparison takes them, and the following with a grain of salt as your speed will vary.

8KB I/O Size

1MB I/O size

NAND flash SSD

100% Seq. Read

100% Seq. Write

100% Ran. Read

100% Ran. Write

100% Seq. Read

100% Seq. Write

100% Ran. Read

100% Ran. Write

NVMe

IOPs

41829.19

33349.36

112353.6

28520.82

1437.26

889.36

1336.94

496.74

PCIe

Bandwidth

326.79

260.54

877.76

222.82

1437.26

889.36

1336.94

496.74

AiC

Resp.

3.23

3.90

1.30

4.56

178.11

287.83

191.27

515.17

CPU / IOP

0.001571

0.002003

0.000689

0.002342

0.007793

0.011244

0.009798

0.015098

12Gb

IOPs

34792.91

34863.42

29373.5

27069.56

427.19

439.42

416.68

385.9

SAS

Bandwidth

271.82

272.37

229.48

211.48

427.19

429.42

416.68

385.9

Resp.

3.76

3.77

4.56

5.71

599.26

582.66

614.22

663.21

CPU / IOP

0.001857

0.00189

0.002267

0.00229

0.011236

0.011834

0.01416

0.015548

6Gb

IOPs

33861.29

9228.49

28677.12

6974.32

363.25

65.58

356.06

55.86

SATA

Bandwidth

264.54

72.1

224.04

54.49

363.25

65.58

356.06

55.86

Resp.

4.05

26.34

4.67

35.65

704.70

3838.59

718.81

4535.63

CPU / IOP

0.001899

0.002546

0.002298

0.003269

0.012113

0.032022

0.015166

0.046545

Table 1 Relative performance of various protocols and interfaces

The workload results in table 1 were generated using a vdbench script running on a Windows 2012 R2 based server and are intended to be a relative indicator of different protocol and interfaces; your performance mileage will vary. The results shown below compare the number of IOPs (activity rate) for reads, writes, random and sequential across small 8KB and large 1MB sized I/Os.

Also shown in table 1 are bandwidth or throughput (e.g. amount of data moved), response time and the amount of CPU used per IOP. Note in table 1 how NVMe can do higher IOPs with a lower CPU per IOP, or, using a similar amount of CPU, do more work at a lower latency. SSD has been used for decades to help reduce CPU bottlenecks or defer server upgrades by removing I/O wait times and reduce CPU consumption (e.g. wait or lost time).

Can NVMe solutions run faster than those shown above? Absolutely!

Where To Learn More

View additional NVMe, SSD, NVM, SCM, Data Infrastructure and related topics via the following links.

Additional learning experiences along with common questions (and answers), as well as tips can be found in Software Defined Data Infrastructure Essentials book.

Software Defined Data Infrastructure Essentials Book SDDC

What This All Means

Continue reading about NVMe with Part IV (Where and How to use NVMe) in this five-part series, or jump to Part I, Part II or Part V.

Ok, nuff said, for now.

Gs

Greg Schulz – Microsoft MVP Cloud and Data Center Management, VMware vExpert 2010-2017 (vSAN and vCloud). Author of Software Defined Data Infrastructure Essentials (CRC Press), as well as Cloud and Virtual Data Storage Networking (CRC Press), The Green and Virtual Data Center (CRC Press), Resilient Storage Networks (Elsevier) and twitter @storageio. Courteous comments are welcome for consideration. First published on https://storageioblog.com any reproduction in whole, in part, with changes to content, without source attribution under title or without permission is forbidden.

All Comments, (C) and (TM) belong to their owners/posters, Other content (C) Copyright 2006-2024 Server StorageIO and UnlimitedIO. All Rights Reserved. StorageIO is a registered Trade Mark (TM) of Server StorageIO.

Posted on

Lenovo TS140 Server and Storage I/O Review

Storage I/O trends

Lenovo TS140 Server and Storage I/O Review

This is a review that looks at my recent hands on experiences in using a TS140 (Model MT-M 70A4 – 001RUS) pedestal (aka tower) server that the Lenovo folks sent to me to use for a month or so. The TS140 is one of the servers that Lenovo had prior to its acquisition of IBM x86 server business that you can read about here.

The Lenovo TS140 Experience

Lets start with the overall experience which was very easy and good. This includes going from initial answering some questions to get the process moving, agreeing to keep the equipment safe, secure, insured as well as not damaging anything (this was not a tear down and rip it apart into pieces trial).

Part of the process also involved answering some configuration related questions and shortly there after a large box from Lenovo arrived. Turns out it was a box (server hardware) inside of a Lenovo box, that was inside a slightly larger unmarked shipping box (see larger box in the background).

TS140 Evaluation Arrives

TS140 shipment undergoing initial security screen scan and sniff (all was ok)

TS140 with Windows 2012
TS140 with Keyboard and Mouse (Monitor not included)

One of the reasons I have a photo of the TS140 on a desk is that I initially put it in an office environment as Lenovo claimed it would be quiet enough to do so. I was not surprised and indeed the TS140 is quiet enough to be used where you would normally find a workstation or mini-tower. By being so quiet the TS140 is a good fit for environments that need a small or starter server that has to go into an office environment as opposed to a server or networking room. For those who are into mounting servers, there is the option for placing the TS140 on its side into a cabinet or rack.

Windows 2012 on TS140
TS140 with Windows Server 2012 Essentials

TS140 as tested

TS140 Selfie of whats inside
TS140 "Selfie" with 4 x 4GB DDR3 DIMM (16GB) and PCIe slots (empty)

16GB RAM (4 x 4GB DDR3 UDIMM, larger DIMMs are supported)
Windows Server 2012 Essentials
Intel Xeon E3-1225 v3 @3.2 Ghz quad (C226 chipset and TPM 1.2) vPRO/VT/EP capable
Intel GbE 1217-LM Network connection
280 watt power supply
Keyboard and mouse (no monitor)
Two 7.2K SATA HDDs (WD) configured as RAID 1 (100GB Lun)
Slot 1 PCIe G3 x16
Slot 2 PCIe G2 x1
Slot 3 PCIe G2 x16 (x4 electrical signal)
Slot 4 PCI (legacy)
Onboard 6GB SATA RAID 0/1/10/5
Onboard SATSA 3.0 (6Gbps) connectors (0-4), USB 3.0 and USB 2.0

Read more about what I did with the Lenovo TS140 in part II of my review along with what I liked, did not like and general comments here.

Ok, nuff said (for now)

Cheers
Gs

Greg Schulz – Author Cloud and Virtual Data Storage Networking (CRC Press), The Green and Virtual Data Center (CRC Press) and Resilient Storage Networks (Elsevier)
twitter @storageio

All Comments, (C) and (TM) belong to their owners/posters, Other content (C) Copyright 2006-2024 Server StorageIO and UnlimitedIO LLC All Rights Reserved

Posted on

Part II: What I did with Lenovo TS140 in my Server and Storage I/O Review

Storage I/O trends

Part II: Lenovo TS140 Server and Storage I/O Review


This is the second of a two-part post series on my recent experiences with a Lenovo TS140 Server, you can read part I here.

What Did I do with the TS140

After initial check out in an office type environment, I moved the TS140 into the lab area where it joined other servers to be used for various things.

Some of those activities included using the Windows Server 2012 Essentials along with associated admin activities. Also, I also installed VMware ESXi 5.5 and ran into a few surprises. One of those was that I needed to apply an update to VMware drivers to support the onboard Intel NIC, as well as enable VT and EP modes for virtualization to assist via the BIOS. The biggest surprise was that I discovered I could not install VMware onto an internal drive attached via one of the internal SATA ports which turns out to be a BIOS firmware issue.

Lenovo confirmed this when I brought it to their attention, and the workaround is to use USB to install VMware onto a USB flash SSD thumb drive, or other USB attached drive or to use external storage via an adapter. As of this time Lenovo is aware of the VMware issue, however, no date for new BIOS or firmware is available. Speaking of BIOS, I did notice that there was some newer BIOS and firmware available (FBKT70AUS December 2013) than what was installed (FB48A August of 2013). So I went ahead and did this upgrade which was a smooth, quick and easy process. The process included going to the Lenovo site (see resource links below), selecting the applicable download, and then installing it following the directions.

Since I was going to install various PCIe SAS adapters into the TS140 attached to external SAS and SATA storage, this was not a big issue, more of an inconvenience Likewise for using storage mounted internally the workaround is to use an SAS or SATA adapter with internal ports (or cable). Speaking of USB workarounds, have a HDD, HHDD, SSHD or SSD that is a SATA device and need to attach it to USB, then get one of these cables. Note that there are USB 3.0 and USB 2.0 cables (see below) available so choose wisely.

USB to SATA adapter cable

In addition to running various VMware-based workloads with different guest VMs.

I also ran FUTREMARK PCmark (btw, if you do not have this in your server storage I/O toolbox it should be) to gauge the systems performance. As mentioned the TS140 is quiet. However, it also has good performance depending on what processor you select. Note that while the TS140 has a list price as of the time of this post under $400 USD, that will change depending on which processor, amount of memory, software and other options you choose.

Futuremark PCMark
PCmark

PCmark testResults
Composite score2274
Compute11530
System Storage2429
Secondary Storage2428
Productivity1682
Lightweight2137

PCmark results are shown above for the Windows Server 2012 system (non-virtualized) configured as shipped and received from Lenovo.

What I liked

Unbelievably quiet which may not seem like a big deal, however, if you are looking to deploy a server or system into a small office workspace, this becomes an important considerations. Otoh, if you are a power user and want a robust server that can be installed into a home media entertainment system, well, this might be a nice to have consideration ;).

Something else that I liked is that the TS140 with the E3-1220 v3 family of processor supports PCIe G3 adapters which are useful if you are going to be using 10GbE cards or 12Gbs SAS and faster cards to move lots of data, support more IOPs or reduce response time latency.

In addition, while only 4 DIMM slots is not very much, its more than what some other similar focused systems have, plus with large capacity DIMMs, you can still get a nice system, or two, or three or four for a cluster at a good price or value (Hmm, VSAN anybody?). Also while not a big item, the TS140 did not require ordering an HDD or SSD if you are not also ordering software the system for a diskless system and have your own.

Speaking of IO slots, naturally I’m interested in Server Storage I/O so having multiple slots is a must have, along with the processor that is quad core (pretty much standard these days) along with VT and EP for supporting VMware (these were disabled in the BIOS. However, that was an easy fix).

Then there is the price as of this posting starting at $379 USD which is a bare bones system (e.g. minimal memory, basic processor, no software) whose price increases as you add more items. What I like about this price is that it has the PCIe G3 slot as well as other PCIe G2 slots for expansion meaning I can install 12Gbps (or 6Gbps) SAS storage I/O adapters, or other PCIe cards including SSD, RAID, 10GbE CNA or other cards to meet various needs including software defined storage.

What I did not like

I would like to have had at least six vs. four DIMM slots, however keeping in mind the price point of where this system is positioned, not to mention what you could do with it thinking outside of the box, I’m fine with only 4 x DIMM. Space for more internal storage would be nice, however, if that is what you need, then there are the larger Lenovo models to look at. By the way, thinking outside of the box, could you do something like a Hadoop, OpenStack, Object Storage, VMware VSAN or other cluster with these in addition to using as a Windows Server?

Yup.

Granted you won’t have as much internal storage, as the TS140 only has two fixed drive slots (for more storage there is the model TD340 among others).

However it is not that difficult to add more (not Lenovo endorsed) by adding a StarTech enclosure like I did with my other systems (see here). Oh and those extra PCIe slots, that’s where a 12Gbs (or 6Gbps) adapter comes into play while leaving room for GbE cards and PCIe SSD cards. Btw not sure what to do with that PCIe x1 slot, that’s a good place for a dual GbE NIC to add more networking ports or an SATA adapter for attaching to larger capacity slower drives.

StarTech 2.5" SAS and SATA drive enclosure on Amazon.com
StarTech 2.5″ SAS SATA drive enclosure via Amazon.com

If VMware is not a requirement, and you need a good entry level server for a large SOHO or small SMB environment, or, if you are looking to add a flexible server to a lab or for other things the TS140 is good (see disclosure below) and quiet.

Otoh as mentioned, there is a current issue with the BIOS/firmware with the TS140 involving VMware (tried ESXi 5 & 5.5).

However I did find a workaround which is that the current TS140 BIOS/Firmware does work with VMware if you install onto a USB drive, and then use external SAS, SATA or other accessible storage which is how I ended up using it.

Lenovo TS140 resources include

  • TS140 Lenovo ordering website
  • TS140 Data and Spec Sheet (PDF here)
  • Lenovo ThinkServer TS140 Manual (PDF here)
  • Intel E3-1200 v3 processors capabilities (Web page here)
  • Lenovo Drivers and Software (Web page here)
  • Lenovo BIOS and Drivers (Web page here)
  • Enabling Virtualization Technology (VT) in TS140 BIOS (Press F1) (Read here)
  • Enabling Intel NIC (82579LM) GbE with VMware (Link to user forum and a blog site here)
  • My experience from a couple years ago dealing with Lenovo support for a laptop issue

    • Summary

    Disclosure: Lenovo loaned the TS140 to me for just under two months including covering shipping costs at no charge (to them or to me) hence this is not a sponsored post or review. On the other hand I have placed an order for a new TS140 similar to the one tested that I bought on-line from Lenovo.

    This new TS140 server that I bought joins the Dell Inspiron I added late last year (read more about that here) as well as other HP and Dell systems.

    Overall I give the Lenovo TS140 an provisional "A" which would be a solid "A" once the BIOS/firmware issue mentioned above is resolved for VMware. Otoh, if you are not concerned about using the TS140 for VMware (or can do a work around), then consider it as an "A".

    As mentioned above, I liked it so much I actually bought one to add to my collection.
