IBM announces new Power9 processor based E950 E980 server systems

IBM announces new Power9 processor based E950 E980 server systems

IBM announces new Power9 processor based E950 E980 server systems.

IBM announces new Power9 processor based E950 E980 server systems.

As a single server or node, the Power9 E950 supports up to four (4) CPU processor sockets each with multiple cores. An E980 system comprises up to four E950 based systems as a solution. The new E950 succeeds Power E850 and E850C, its machine type model number is 9040-MR9 that is a 4U single enclosure with two or four processor modules.


Power9 Processor image via IBM.com

IBM Power9 E950 and E980

As a refresher, leveraging IBMs proprietary processor chip technology called Power, which are used in their various mid-range and higher end server solutions.

The Power9 E950 and E980 systems support PowerVM virtualization, along with virtual machine (VM) mobility as well as optimization for OpenStack among other workloads.

IBM touts Power9 E950 (AIX and Linux) and E980 (AIX, Linux, I systems) optimized for:

  • Analytics, AI (ML/DL) and Cognitive computing
    • Faster cores and threads, more performance per socket
    • More bandwidth and lower latency
  • Super Compute (SC), Technical, High Performance Compute (HPC)
    • High bandwidth graphical processing unit (GPU) attachment
    • Optimized CPU GPU memory sharing and interaction
    • Bandwidth optimized main memory
    • Virtual addressing optimization
  • Cloud and Hyper Scale Data Infrastructures and Data Centers
    • Dense performance and energy consumption
    • Virtualization assist, QoS, power management and security
    • Fast I/O subsystem for server I/O to storage and networks
  • Enterprise data infrastructures and data centers
    • Scale-up and scale-out
    • Server and workload consolidation
    • Up to 4TB of buffered memory per socket (16TB per E950 node)

IBM E950 Power9 System

Front view of E950 System Image via IBM.com

The following image (via IBM.com) shows an exploded component view of the E950.
IBM Power9 E950 exploded view

The following image (via IBM.com) shows a top view looking down into an E950.

IBM Power9 E950 top view

E950 is a 4U server (or E980 node) with compute and memory features including:

  • Power9 8,10,11 or 12 cores per socket, up to 48 cores (4 x 12 cores)
  • Four times memory compared to E850 systems (up to 16TB or 4TB per socket)
  • Eight (8) memory riser cards with 16 DDR4 DIMM each (8,16,32,64 or 128GB DIMM)
  • Memory bandwidth of up to 920 GB/sec (note that is big B not Gb or little b)
  • Refresh your server, CPU, compute, socket, core and threads knowledge here.

E950 also features faster I/O subsystem for server I/O to storage and networks:

  • 630GB/sec (e.g. 5Tbpsec) I/O bandwidth
  • NVIDIA NVLink GPU attachment, PCIe Gen4 and OpenCAPI I/O
  • Up to eight (8) (4 socket systems) PCIe Gen4 x16 (16 lanes each) card slots
  • Up to two (2) PCIe Gen4 x8 (8 lanes each) card slots
  • Up to 144 PCIe lanes (4 socket systems), full height, half length
  • USB 3 (2 front, 2 rear)
  • 12 internal 2.5” form factor storage bays for HDD and SSDs including up to eight (8) SAS SAS, and four NVMe U.2 (8639). Note that NVMe devices attach via PCIe ports and lanes.
  • Hot plug components and optional I/O expansion as well as storage drawers
  • Here is a refresher (or primer) on PCIe, as well as NVMe, SAS, and SSD technologies.

IBM E980

The IBM E980 system is a collection of up to four nodes along with a control module, a cabinet rack E980 system is shown below (image via IBM.com).
IBM Power9 E980

IBM Power9 E950 E980
Via IBM.com

View more features for E950 here (PDF) and E980 here (PDF).

Where to learn more

Learn more about IBM Power and data infrastructures related topics via the following links:

Additional learning experiences along with common questions (and answers), as well as tips can be found in Software Defined Data Infrastructure Essentials book.

Software Defined Data Infrastructure Essentials Book SDDC

What this all means

These new systems provide increase in not only compute, also memory as well as server I/O for storage and networking. With the addition of multiple PCIe Gen4 x16 card slots, more GPUs such as those from NVIDIA as well as fast Fibre Channel, SAS and NVMe based storage can be attached to these systems.

With a good number of x16 PCIe Gen4 slots, the E950 and E980 systems are capable of supporting more GPU offload cards such as those from NVIDIA, along with other ASIC or FPGA accelerator devices. In addition to compute offload, the x16 PCIe Gen4 slots enable server I/O cards to more storage devices including faster Fibre Channel, Ethernet, SAS as well as NVMe attachment.

Overall, IBM announces new Power9 processor based E950 E980 server systems is a good move for existing customers of AIX, Linux as well as with the E980 for i systems.

Ok, nuff said, for now.

Cheers Gs

Greg Schulz – Microsoft MVP Cloud and Data Center Management, VMware vExpert 2010-2018. Author of Software Defined Data Infrastructure Essentials (CRC Press), as well as Cloud and Virtual Data Storage Networking (CRC Press), The Green and Virtual Data Center (CRC Press), Resilient Storage Networks (Elsevier) and twitter @storageio. Courteous comments are welcome for consideration. First published on https://storageioblog.com any reproduction in whole, in part, with changes to content, without source attribution under title or without permission is forbidden.

All Comments, (C) and (TM) belong to their owners/posters, Other content (C) Copyright 2006-2024 Server StorageIO and UnlimitedIO. All Rights Reserved. StorageIO is a registered Trade Mark (TM) of Server StorageIO.

Posted on

New family of Intel Xeon Scalable Processors enable software defined data infrastructures (SDDI) and SDDC

Intel Xeon Scalable Processors SDDI and SDDC

server storage I/O data infrastructure trends

Today Intel announced a new family of Xeon Scalable Processors (aka Purely) that for some workloads Intel claims to be on average of 1.65x faster than their predecessors. Note your real improvement will vary based on workload, configuration, benchmark testing, type of processor, memory, and many other server storage I/O performance considerations.

Intel Scalable Xeon Processors
Image via Intel.com

In general the new Intel Xeon Scalable Processors enable legacy and software defined data infrastructures (SDDI), along with software defined data centers (SDDC), cloud and other environments to support expanding workloads more efficiently as well as effectively (e.g. boosting productivity).

Data Infrastructures and workloads

Some target application and environment workloads Intel is positioning these new processors for includes among others:

  • Machine Learning (ML), Artificial Intelligence (AI), advanced analytics, deep learning and big data
  • Networking including software defined network (SDN) and network function virtualization (NFV)
  • Cloud and Virtualization including Azure Stack, Docker and Kubernetes containers, Hyper-V, KVM, OpenStack VMware vSphere, KVM among others
  • High Performance Compute (HPC) and High Productivity Compute (e.g. the other HPC)
  • Storage including legacy and emerging software defined storage software deployed as appliances, systems or server less deployment modes.

Features of the new Intel Xeon Scalable Processors include:

  • New core micro architecture with interconnects and on die memory controllers
  • Sockets (processors) scalable up to 28 cores
  • Improved networking performance using Quick Assist and Data Plane Development Kit (DPDK)
  • Leverages Intel Quick Assist Technology for CPU offload of compute intensive functions including I/O networking, security, AI, ML, big data, analytics and storage functions. Functions that benefit from Quick Assist include cryptography, encryption, authentication, cipher operations, digital signatures, key exchange, loss less data compression and data footprint reduction along with data at rest encryption (DARE).
  • Optane Non-Volatile Dual Inline Memory Module (NVDIMM) for storage class memory (SCM) also referred to by some as Persistent Memory (PM), not to be confused with Physical Machine (PM).
  • Supports Advanced Vector Extensions 512  (AVX-512) for HPC and other workloads
  • Optional Omni-Path Fabrics in addition to 1/10Gb Ethernet among other I/O options
  • Six memory channels supporting up to 6TB of RDIMM with multi socket systems
  • From two to eight  sockets per node (system)
  • Systems support PCIe 3.x (some supporting x4 based M.2 interconnects)

Note that exact speeds, feeds, slots and watts will vary by specific server model and vendor options. Also note that some server system solutions have two or more nodes (e.g. two or more real servers) in a single package not to be confused with two or more sockets per node (system or motherboard). Refer to the where to learn more section below for links to Intel benchmarks and other resources.

Software Defined Data Infrastructures, SDDC, SDX and SDDI

What About Speeds and Feeds

Watch for and check out the various Intel partners who have or will be announcing their new server compute platforms based on Intel Xeon Scalable Processors. Each of the different vendors will have various speeds and feeds options that build on the fundamental Intel Xeon Scalable Processor capabilities.

For example Dell EMC announced their 14G server platforms at the May 2017 Dell EMC World event with details to follow (e.g. after the Intel announcements).

Some things to keep in mind include the amount of DDR4 DRAM (or Optane NVDIMM) will vary by vendors server platform configuration, motherboards, several sockets and DIMM slots. Also keep in mind the differences between registered (e.g. buffered RDIMM) that give good capacity and great performance, and load reduced DIMM (LRDIMM) that have great capacity and ok performance.

Various nvme options

What about NVMe

It’s there as these systems like previous Intel models support NVMe devices via PCIe 3.x slots, and some vendor solutions also supporting M.2 x4 physical interconnects as well.

server storageIO flash and SSD
Image via Software Defined Data Infrastructure Essentials (CRC)

Note that Broadcom formerly known as Avago and LSI recently announced PCIe based RAID and adapter cards that support NVMe attached devices in addition to SAS and SATA.

server storage data infrastructure sddi

What About Intel and Storage

In case you have not connected the dots yet, the Intel Xeon Scalable Processor based server (aka compute) systems are also a fundamental platform for storage systems, services, solutions, appliances along with tin-wrapped software.

What this means is that the Intel Xeon Scalable Processors based systems can be used for deploying legacy as well as new and emerging software-defined storage software solutions. This also means that the Intel platforms can be used to support SDDC, SDDI, SDX, SDI as well as other forms of legacy and software-defined data infrastructures along with cloud, virtual, container, server less among other modes of deployment.

Image Via Intel.com

Moving beyond server and compute platforms, there is another tie to storage as part of this recent as well as other Intel announcements. Just a few weeks ago Intel announced 64 layer triple level cell (TLC) 3D NAND solutions positioned for the client market (laptop, workstations, tablets, thin clients). Intel with that announcement increased the traditional aerial density (e.g. bits per square inch or cm) as well as boosting the number of layers (stacking more bits as well).

The net result is not only more bits per square inch, also more per cubic inch or cm. This is all part of a continued evolution of NAND flash including from 2D to 3D, MCL to TLC, 32 to 64 layer.  In other words, NAND flash-based Solid State Devices (SSDs) are very much still a relevant and continue to be enhanced technology even with the emerging 3D XPoint and Optane (also available via Amazon in M.2) in the wings.

server memory evolution
Via Intel and Micron (3D XPoint launch)

Keep in mind that NAND flash-based technologies were announced almost 20 years ago (1999), and are still evolving. 3D XPoint announced two years ago, along with other emerging storage class memories (SCM), non-volatile memory (NVM) and persistent memory (PM) devices are part of the future as is 3D NAND (among others). Speaking of 3D XPoint and Optane, Intel had announcements about that in the past as well.

Where To Learn More

Learn more about Intel Xeon Scalable Processors along with related technology, trends, tools, techniques and tips with the following links.

What This All Means

Some say the PC is dead and IMHO that depends on what you mean or define a PC as. For example if you refer to a PC generically to also include servers besides workstations or other devices, then they are alive. If however your view is that PCs are only workstations and client devices, then they are on the decline.

However if your view is that a PC is defined by the underlying processor such as Intel general purpose 64 bit x86 derivative (or descendent) then they are very much alive. Just as older generations of PCs leveraging general purpose Intel based x86 (and its predecessors) processors were deployed for many uses, so to are today’s line of Xeon (among others) processors.

Even with the increase of ARM, GPU and other specialized processors, as well as ASIC and FPGAs for offloads, the role of general purpose processors continues to increase, as does the technology evolution around. Even with so called server less architectures, they still need underlying compute server platforms for running software, which also includes software defined storage, software defined networks, SDDC, SDDI, SDX, IoT among others.

Overall this is a good set of announcements by Intel and what we can also expect to be a flood of enhancements from their partners who will use the new family of Intel Xeon Scalable Processors in their products to enable software defined data infrastructures (SDDI) and SDDC.

Ok, nuff said (for now…).

Cheers
Gs

Greg Schulz – Multi-year Microsoft MVP Cloud and Data Center Management, VMware vExpert (and vSAN). Author Cloud and Virtual Data Storage Networking (CRC Press), The Green and Virtual Data Center (CRC Press), Resilient Storage Networks (Elsevier) and twitter @storageio. Watch for the spring 2017 release of his new book "Software-Defined Data Infrastructure Essentials" (CRC Press).

Courteous comments are welcome for consideration. First published on https://storageioblog.com any reproduction in whole, in part, with changes to content, without source attribution under title or without permission is forbidden.

All Comments, (C) and (TM) belong to their owners/posters, Other content (C) Copyright 2006-2023 Server StorageIO(R) and UnlimitedIO. All Rights Reserved.

Posted on

Server Storage I/O Cables Connectors Chargers & other Geek Gifts

Server Storage I/O Cables Connectors Chargers & other Geek Gifts

server storage I/O trends

This is part one of a two part series for what to get a geek for a gift, read part two here.

It is that time of the year when annual predictions are made for the upcoming year, including those that will be repeated next year or that were also made last year.

It’s also the time of the year to get various projects wrapped up, line up new activities, get the book-keeping things ready for year-end processing and taxes, as well as other things.

It’s also that time of the year to do some budget and project planning including upgrades, replacements, enhancements while balancing an over-subscribed holiday party schedule some of you may have.

Lets not forget getting ready for vacations, perhaps time off from work with some time upgrading your home lab or other projects.

Then there are the gift lists or trying to figure out what to get that difficult to shop for person particular geek’s who may have everything, or want the latest and greatest that others have, or something their peers don’t have yet.

Sure I have a DJI Phantom II on my wish list, however also have other things on my needs list (e.g. what I really need and want vs. what would be fun to wish for).

DJI Phantom helicopter drone
Image via DJI.com, click on image to learn more and compare models

So here are some things for the geek or may have everything or is up on having the latest and greatest, yet forgot or didn’t know about some of these things.

Not to mention some of these might seem really simple and low-cost, think of them like a Lego block or erector set part where your imagination will be your boundary how to use them. Also, most if not all of these are budget friendly particular if you shop around.

Replace a CD/DVD with 4 x 2.5″ HDD’s or SSD’s

So you need to add some 2.5" SAS or SATA HDD’s, SSD’s, HHDD’s/SSHD’s to your server for supporting your VMware ESXi, Microsoft Hyper-V, KVM, Xen, OpenStack, Hadoop or legacy *nix or Windows environment or perhaps gaming system. Challenge is that you are out of disk drive bay slots and you want things neatly organized vs. a rat’s nest of cables hanging out of your system. No worries assuming your server has an empty media bay (e.g. those 5.25" slots where CDs/DVDs or really old HDD’s go), or if you can give up the CD/DVD, then use that bay and its power connector to add ones of these. This is a 4 x 2.5" SAS and SATA drive bay that has a common power connector (molex male) with each drive bay having its own SATA drive connection. By each drive having its own SATA connection you can map the drives to an on-board available SATA port attached to a SAS or SATA controller, or attach an available port on a RAID adapter to the ports using a cable such as small form factor (SFF) 8087 to SATA.

sas storage enclosuresas sata storage enclosure
(Left) Rear view with Molex power and SATA cables (Right) front view

I have a few of these in different systems and what I like about them is that they support different drive speeds, plus they will accept a SAS drive where many enclosures in this category only support SATA. Once you mount your 2.5" HDD or SSD using screws, you can hot swap (requires controller and OS support) the drives and move them between other similar enclosures as needed. The other thing I like is that there are front indicator lights as well as by each drive having its own separate connection, you can attach some of the drives to a RAID adapter while others connected to on-board SATA ports. Oh, and you can also have different speeds of drives as well.

Power connections

Depending on the type of your server, you may have Molex, SATA or some other type of power connections. You can use different power connection cables to go from one type (Molex) to another, create a connection for two devices, create an extension to reach hard to get to mounting locations.

Warning and disclosure note, keep in mind how much power you are drawing when attaching devices to not cause an electrical or fire hazard, follow manufactures instructions and specification doing so at your own risk! After all, Just like Clark Grizzwald in National Lampoon Christmas Vacation who found you could attach extension cord to splitters to splitters and fan-out to have many lights attached, you don’t want to cause a fire or blackout when you plug to many drives in.


National Lampoon Christmas Vacation

Measuring Power

Ok so you do not want to do a Clark Grizzwald (see above video) and overload a power circuit, or perhaps you simply want to know how many watts, amps or quality of your voltage is.

There are many types of power meters along with various prices, some even have interfaces where you can grab event data to correlate with server storage I/O networking performance to do things such as IOP’s per watt among other metrics. Speaking of IOP’s per watt, check out the SNIA Emerald site where they have some good tools including a benchmark script that uses Vdbench to drive hot band workload (e.g. basically kick the crap out of a storage system).

Back to power meters, I like the Kill A Watt series of meters as they give good info about amps, volts, power quality. I have these plugged into outlets so I can see how much power is being used by the battery backup units (BBU) aka UPS that also serve as power surge filters. If needed I can move these further downstream to watch the power intake of a specific server, storage, network or other device.

Kill A Watt Power meter

Standby and backup power

Electrical power surge strips should be a given or considered common sense, however what is or should be common sense should be repeated so that it remains common sense, you should be using power surge strips or other devices.

Standby, UPS and BBU

For most situations a good surge suppressor will cover short power transients.

APC power strips and battery backup
Image via APC and model similar to those that I have

For slightly longer power outages of a few seconds to minutes, that’s where battery backup up (BBU) units that also have surge suppression comes into play. There are many types, sizes with various features to meet your needs and budget. I have several of theses in a couple of different sizes not only for servers, storage and networking equipment (including some WiFi access points, routers, etc), I also have them for home things such as satellite DVR’s. However not everything needs to stay on while others simply need to stay on long-enough in order to shutdown manually or via automated power off sequences.

Alternate Power Generation

Generators are not just for the rich and famous or large data center, like other technologies they are available in different sizes, power capacity, fuel sources, manual or automated among other things.

kohler residential generator
Image via Kohler Power similar to model that I have

Note that even with a typical generator there will be a time gap from the time power goes off until the generator starts, stabilizes and you have good power. That’s where the BBU and UPS mentioned above comes into play to bridge those time gaps which in my cases is about 25-30 seconds. Btw, knowing how much power your technology is drawing using tools such as the Kill A Watt is part of the planning process to avoid surprises.

What about Solar Power

Yup, whether it is to fit in and be green, or simply to get some electrical power when or where it is not needed to charge a battery or power some device, these small solar power devices are very handy.

solar charger
Image via Amazon.com
solar battery charger
Image via Amazon.com

For example you can get or easily make an adapter to charge laptops, cell phones or even power them for normal use (check manufactures information on power usage, Amps and Voltage draws among other warnings to prevent fire and other things). Btw, not only are these handy for computer related things, they also work great for keeping batteries on my fishing boat charged so that I have my fish finder and other electronics, just saying.

Fire suppression

How about a new or updated smoke and fire detection alarm monitor, as well as fire extinguisher for the geek’s software defined hardware that runs on power (electrical or battery)?

The following is from the site Fire Extinguisher 101 where you can learn more about different types of suppression technologies.

Image via Fire Extinguisher 101
  • Class A extinguishers are for ordinary combustible materials such as paper, wood, cardboard, and most plastics. The numerical rating on these types of extinguishers indicates the amount of water it holds and the amount of fire it can extinguish. Geometric symbol (green triangle)
  • Class B fires involve flammable or combustible liquids such as gasoline, kerosene, grease and oil. The numerical rating for class B extinguishers indicates the approximate number of square feet of fire it can extinguish. Geometric symbol (red square)
  • Class C fires involve electrical equipment, such as appliances, wiring, circuit breakers and outlets. Never use water to extinguish class C fires – the risk of electrical shock is far too great! Class C extinguishers do not have a numerical rating. The C classification means the extinguishing agent is non-conductive. Geometric symbol (blue circle)
  • Class D fire extinguishers are commonly found in a chemical laboratory. They are for fires that involve combustible metals, such as magnesium, titanium, potassium and sodium. These types of extinguishers also have no numerical rating, nor are they given a multi-purpose rating – they are designed for class D fires only. Geometric symbol (Yellow Decagon)
  • Class K fire extinguishers are for fires that involve cooking oils, trans-fats, or fats in cooking appliances and are typically found in restaurant and cafeteria kitchens. Geometric symbol (black hexagon)

Wrap up for part I

This wraps up part I of what to get a geek V2014, continue reading part II here.

Ok, nuff said, for now…

Cheers gs

Greg Schulz – Author Cloud and Virtual Data Storage Networking (CRC Press), The Green and Virtual Data Center (CRC Press) and Resilient Storage Networks (Elsevier)
twitter @storageio

All Comments, (C) and (TM) belong to their owners/posters, Other content (C) Copyright 2006-2024 Server StorageIO and UnlimitedIO LLC All Rights Reserved

Posted on

Part II 2014 Server Storage I/O Geek Gift ideas

Part II 2014 Server Storage I/O Geek Gift ideas

server storage I/O trends

This is part two of a two part series for what to get a geek for a gift, read part one here.

KVM switch

Not to be confused with a software defined network (SDN) switch for the KVM virtualization hypervisor, how about the other KVM switch?

kvm switch
My KVM switch in use, looks like five servers are powered on.

If you have several servers or devices that need a Keyboard Video Mouse connection, or are using A/B box or other devices, why not combine using a KVM switch. I bought the Startech shown above from Amazon which works out to be under $40 a port (connection) meaning I do not have to have Keyboards, Video monitors or Mouse for each of those systems.

With my KVM shown above, I have used the easy setup to name each of the ports via the management software so that when a button is pressed, not only does the applicable screen appear, also a graphic text message overlay tell me which server is being displayed. This is handy for example as I have some servers that are identical (e.g. Lenovo TS140s) running VMware that a quick glance can help me verify I’m on the right one (e.g. without looking at the VMware host name or IP). This feature is also handy during power on self test (POST) when the servers physical or logical (e.g. VMware, Windows, Hyper-V, Ubuntu, Openstack, etc..) identity is known. Another thing I like about these is that on the KVM switch there is a single VGA type connector, while on the server end there is a VGA connector for attaching to the monitor port of the device, and a break out cable with USB for attaching to server to get Keyboard and Mouse.

Single drive shoe box

Usually things are in larger server or storage systems enclosures, however now and then there is the need to supply power to a HDD or SSD along with a USB or eSATA interface for attaching to a system. These are handy and versatile little aluminum enclosures.

single drive sata enclosuredisk enclosure

Note that you can now also find these types of cables that can do same or similar function for in side a server connection (check out this cable among others at Amazon)

USB-SATA cable

It would be easy to assume that everybody would have these by now particular since everybody (depending on who you listen to or what you read) has probably converted from a HDD to SSD. However for those who have not done an HDD to SSD, or simply a HDD to newer HDD conversion, or that have an older HDD (or SSD) lying around, these cables come in very handy. attach one end (e.g. the SATA end) to a HDD or SSD and the other to a USB port on a laptop, tablet or server. Caveat however with these is that they generally only have power (via USB) for a 2.5″ type drive so for a larger more power-hungry 3.5″ device, you would need a different powered cable, or small shoe box type enclosure.

eSATA cable
(Left) USB to SATA and (Right) eSATA to SATA cables

Mophie USB charger

There are many different types of mobile device chargers available along with multi-purpose cables. I like the Mophie which I received at an event from NetApp (Thanks NetApp) and the flexible connector I received from Dyn while at AWS re:Invent 2014 (Thanks Dyn, I’m also a Dyn customer fwiw).
power chargerpower cable
(Left) Mophie Power station and (Right) multi-connector cable

The Mohpie has USB connector so that you can charge it via a charging station or via a computer, as well as attach a USB to Apple or other device connector. There is also a small connector for attach to other devices. This is where the dandy Dyn device comes into play as it has a USB as well as Apple and many other common connectors as shown in the figure below. Google around and I’m sure you can find both for sale, or as giveaways or something similar.

SAS SATA Interposer

sas interposerserver storage power
(Left) SAS to SATA interposer (Right) Molex power with SATA connector to SAS

Note that the above are intended for passing a SAS signal from a device such as HDD or SSD to a SAS based controller that happens to have SATA mechanical or keyed interfaces such as with some servers. This means that the real controller needs to be SAS and the attached drives can be SATA or SAS keeping in mind that a SATA device can plug into a SAS controller however not vise versa. You can find the above at Amazon among other venues. Need a dual-lane SAS connector as an alternative to the one shown above on the right, then check this one out at Amazon.

Need to learn more about the many different facets of SAS and related technologies including how it coexists with iSCSI, Fibre Channel (FC), FCoE, InfiniBand and other interfaces, how about getting a free copy of SAS SANs for Dummies?

SAS SANS for dummies

There are also these for doing board level connections

esata connectorsata to esata cablesata male to male gender changer
Some additional SAS and SATA drive connectors

In the above on the left are a female to female SATA cable with a male to male SATA gender changer attached to be used for example between a storage device and the SATA connector port on a servers motherboard, HBA or RAID controller. In the middle are shown some SATA female to female cables, as well as a SATA to eSATA (external SATA) cable (middle), and on the right are some SATA Male to SATA Male gender changes also shown being used on the left in the above figures.

Internal Power cable / connectors

If you or your geek are doing things in the lab or other environment adding and reconfiguring devices such as some of those mentioned above (or below), sooner or later there will be the need to do something with power cables and connectors.

power meter
Various cables, adapters and extender

In the above figure are shown (top to bottom) a SATA male to molex, SATA female to SATA male and to its right SATA female to Molex. Below that are two SATA females to Molex, below that is a SATA male to dual Molex and on the bottom is a single SATA to dual SATA. Needless to say there are many other combinations of connectors as well as different genders (e.g. Male or Female) along with extenders. As mentioned above, pay attention to manufacturers recommend power draw and safety notices to prevent accidental electric shock or fire.

Intel Edison kit for IoT and IoD

Are you or your geek into the Internet of Things (IoT) or Internet of Devices (IoD) or other similar things and gadgets? Have you heard about Intel’s Edison breakout board for doing software development and attachment of various hardware things? Looking for something to move beyond a Raspberry Pi system?

Intel Edison boardIntel Edison kits
Images via Intel.com

Over the hills, through the woods WiFi

This past year I found Nanostation extended WiFi devices that solved a challenge (problem) which was how to get a secure WiFi signal up to a couple hundred yards through a thick forest between some hill’s.


Image via UBNT.com, check out their other models as well as resources for different deployments

The problem was it was to far and too many tree’s with leaves use a regular WiFi connection and too far to run cable if I did not need to. I found the solution by getting a pair of the Nanostation M2 putting them into bridge mode, then doing some alignment with their narrow beam antennas to bounce a signal through the woods. For those who simply need to go a long distance, these devices can be reconfigured to go several km’s line of sight. Click on the image above to see other models of the Nanostation as well as links to various resources on how they can be used for other things or deployments.

How about some software

  • UpDraft Backup – This is a WordPress blog plugin that I use to back up my entire web including the templates, plug-ins, MySQL database and all other related components. While my dedicated private server gets backed up by my service provider (Bluehost), I wanted an extra detail of protection along with a copy placed at a different place (e.g. at my AWS account). Updraft is an example of an emerging class of tools for backing up and protecting cloud based and cloud born data. For example EMC recently acquired cloud backup startup Spanning who has the ability of protecting Salesforce, Google and other cloud based data.
  • Visual ESXtop – This is a great free tool that provides a nice interface and remote access for doing ESXtop functions normally accomplished from the ESXi console.
  • Microsoft Diskspd – If you or your geek is into server storage I/O performance and benchmark that has a Windows environment and looking for something besides Iometer, have them download the Microsoft Diskspd free utility.
  • Futuremark PCmark – Speaking of server storage I/O performance, check out Futuremark PCmark which will give your computer a great workout from graphics and video to compute, storage I/O and other common tasks.
  • RV Tools – Need to know more about your VMware virtual environment, take a quick inventory or something else, then your geek should have a copy of RV Tools from Robware.
  • iVMControl – For that vgeek how wants to be able to do simple VMware tasks from an iPhone, check out iVMControl tools. Its great, I don’t use it a lot, however there are times where I don’t need to or want to use a tablet or PC to reach my VMware environment, that’s when this virtual gadget comes into play.

Livescribe Digital Pen and Paper

How about a Livescribe digital pen and paper? Sure you can use a PC, Apple or other tablet, however some things are still easier done on a traditional paper and virtual pen. I got one of these about a year ago and use it for note taking, mocking up slides for presentations and in some cases have used this for creating figures and other things. It would be easy to see and place the Livescribe and a Windows or other tablet as an either or competitive however for me, I still see where they are better together addressing different things, at least for now.

livescribe digital penlivescribe digital pen

(Left) using my Livescribe and Echo digital pen (Right) resulting exported .Png

Tip: I you noticed in the above left image (e.g. the original) the lines in the top figure, compared to the lines in the figure on the right are different. If you encounter your livescribe causing lines to run on or into each other it is because your digital pen tip is sticking. It’s easy to check by looking at the tip of your digital pen and see if the small red light is on or off, or if it stays on when you press the pen tip. If it stays on, reset the pen tip. Also when you write, make sure to lift up on the pen tip so that it releases, otherwise you will get results like those shown on the right.

livescribe digital penlivescribe digital pen
(Left) Livescribe Digital Desktop (Middle) Imported Digital Document (Right) Exported PNG

Also check out this optional application that turns a Livescribe Echo pen like mine into a digital tablet allowing you to draw on-screen with certain applications and webinar tools.

Some books for the geek

Speaking of reading, for those who are not up on the No SQL and alternative SQL based databases including Mongo, Hbase, Riak, Cassandra, MySQL, add Seven Databases in Seven Weeks to your liust. Click on the image to read my book review of it as well as links to order it from Amazon. Seven Databases in Seven Weeks (A Guide to Modern Databases and the NoSQL Movement) is a book written Eric Redmond (@coderoshi) and Jim Wilson (@hexlib), part of The Pragmatic Programmers (@pragprog) series that takes a look at several non SQL based database systems.

seven database nosql

Where to get the above items

  • Ebay for new and used
  • Amazon for new and used
  • Newegg
  • PC Pit stop
  • And many other venues

What this all means

Note: Some of the above can be found at your favorite trade show or conference so keep that in mind for future gift giving.

What interesting geek gift ideas or wish list items do you have?

Of course if you have anything interesting to mention feel free to add it to the comments (keep it clean though ;) or feel free to send to me for future mention.

In the meantime have a safe and happy holiday season for what ever holiday you enjoy celebrating anytime of the year.

Ok, nuff said, for now…

Cheers gs

Greg Schulz – Author Cloud and Virtual Data Storage Networking (CRC Press), The Green and Virtual Data Center (CRC Press) and Resilient Storage Networks (Elsevier)
twitter @storageio

All Comments, (C) and (TM) belong to their owners/posters, Other content (C) Copyright 2006-2024 Server StorageIO and UnlimitedIO LLC All Rights Reserved

Posted on

IT and data center sustainability, the other convergence zone

Storage I/O trends

IT and data center sustainability convergence

Recently Hailey Lynne McKeefry (@HaileyMcK), Editor in Chief over at Data Center Acceleration (@DataAccelerate) reached out for a conversation about well, data center themes and topics. Given Hailey’s background in covering technology as well as business supply chain we somehow ended up talking about business, IT and data center sustainability. Hailey wrote a piece about Driving for Datacenter Sustainability and in addition I was honored to be an invited guest for a live on-line chat yesterday (you can view the conversation here).

Excerpt from Haileys piece:

Too often, sustainability efforts in the datacenter are written off as feel-good, public relations efforts. In reality, green is about economics — and done well, it can save the datacenter tons of cash.

"You mention green, and datacenter managers run or cringe and roll their eyes, because there’s been so much green washing done in the past few years," said Greg Schulz, founder of IT consultancy StorageIO. "It’s really about green economics, though, and getting more work done with the same budget."

Read more of Hailey’s piece here

Many different faces of IT and data center sustainability

Granted, when you here the term sustainability, IT and data centers you may think of different things depending on your view or area of focus.

For some it will be Green or environmental focused such as use of renewable and EH&S themes, recycling among others Related to the previous item some will see sustainability as being tied to energy, either tied to cost, availability/accessibility, standby or alternative and renewable Yet for others, it will mean business continuance (BC), disaster recovery (DR), business resiliency (BR), high availability or reliability availability service (RAS) among others Then the economics concerns of keeping the business running to discuss top and bottom line concerns.

Otoh, if your focus is on one of the above or a subset of one of them, you might not view the other areas as being tied to sustainability.

It data center sustainability

Likewise, you might even want to not be included in another other, let alone share your area with others. For example if your focus is on security you may not want to see or hear that data protection is part of sustainability, not to mention backup/restore, bc, dr and so forth.

Learning, education and knowledge sustainability

Part of sustainability is also continuing to learn about new things not only in your field or focus area, also in adjacent spaces.

Keep in mind that there is more of a data center or information factory than just a building or facility with power, cooling as there are the technologies, tools, people, process, delivery/distribution network, warehouse for storing raw and finished material, metrics and management that all go into delivering the product which is information services.

Hence there are many aspects to IT and data center sustainability and thus think more pragmatically about sustaining information factories, however lets also be realistic and not jump the shark by declaring everything as sustainable ;).

Check out the live talk chat that we had yesterday over at Data Center Acceleration by clicking here.

Some related more reading:
Green IT, Green Gap, Tiered Energy and Green Myths
The new Green IT: Efficient, Effective, Smart and Productive
Saving Money with Green IT: Time To Invest In Information Factories
PUE, Are you Managing Power, Energy or Productivity?
Green IT deferral blamed on economic recession might be result of green gap
IT and storage economics 101, supply and demand
The Green and Virtual Data Center (CRC Press) – Intel Recommended Reading List
Driving for Datacenter Sustainability
Live Chat 01/23: Building the Sustainable Datacenter

Ok, nuff said

Cheers
Gs

Greg Schulz – Author Cloud and Virtual Data Storage Networking (CRC Press), The Green and Virtual Data Center (CRC Press) and Resilient Storage Networks (Elsevier)
twitter @storageio

All Comments, (C) and (TM) belong to their owners/posters, Other content (C) Copyright 2006-2014

Posted on

EPA Energy Star Data Center Storage Draft Specification review

Storage I/O trends

For those of you interested in EPA Energy Star for Data Center Storage, here is an announcement for an upcoming conference call and review of the version 1.0 final draft specification.

There are a few attachments referenced in the following note from EPA that can be accessed here:

EPA_Version 1.0 Storage Final Draft Specification Cover Letter
EPA_Version 1.0 Storage Draft 4 Specification Comment Response Document
EPA_Version 1.0 Storage Final Draft Test Method
EPA_Version 1.0 Storage Final Draft Specification

Dear ENERGY STAR® Data Center Storage Partner or Other Interested Party:

Please see the attached important correspondence from the U.S. Environmental Protection Agency concerning the ENERGY STAR Version 1.0 Data Center Storage Final Draft Specification and Test Method. EPA will host a webinar on July 9, 2013 from 3:00 5:00 PM Eastern Time to discuss the documents with stakeholders.  Please RSVP for the webinar to storage@energystar.gov no later than July 5, 2013.

Thank you for your continued support of the ENERGY STAR program.

For more information, visit:www.energystar.gov

This message was sent to you on behalf of ENERGY STAR. Each ENERGY STAR partner organization must have at least one primary contact receiving e-mail to maintain partnership. If you are no longer working on ENERGY STAR, and wish to be removed as a contact, please update your contact status in your MESA account. If you are not a partner organization and wish to opt out of receiving e-mails, you may call the ENERGY STAR Hotline at 1-888-782-7937 and request to have your mass mail settings changed. Unsubscribing means that you will no longer receive program-wide or product-specific e-mails from ENERGY STAR.

Ok, nuff said.

Cheers gs

Greg Schulz – Author Cloud and Virtual Data Storage Networking (CRC Press), The Green and Virtual Data Center (CRC Press) and Resilient Storage Networks (Elsevier)
twitter @storageio

All Comments, (C) and (TM) belong to their owners/posters, Other content (C) Copyright 2006-2024 Server StorageIO and UnlimitedIO LLC All Rights Reserved

Posted on

Green IT deferral blamed on economic recession might be result of green gap

Storage I/O Industry Trends and Perspectives

I recently saw a comment somewhere that talked about Green IT being deferred or set aside due to lack of funding because of ongoing global economic turmoil. For those who see Green IT in the context of the green washing efforts that requiring spending to gain some benefits that I can understand. After all, if your goal is to simply go and be or be seen as being green, there is a cost to doing that.

With tight or shrinking IT budgets, there are other realities and while organizations may want to do the right thing helping the environment, however that is often seen as overhead to financial conscious management.

On the other hand, turn the green washing messaging off or at least dial-it back a bit as has been the case the past couple of years.

Expand the Green IT discussion or change it around a bit from that of being seen or perceived as being green by energy efficiency or avoidance to that of effectiveness, enhanced productivity, doing more with what you have or with less and there is a different opportunity.

That opportunity is to meet the financial and business goals or requirements that as a by-product help the environment. In other words, expand the focus of Green IT to that of economics and improving on resource effectiveness and the environment gets a free ride, or, Green gets self-funded.

The Green and Virtual Data Center Book addressing optimization, effectivness, productivity and economics

The challenge is what I refer to as the Green Gap, which is the disconnect between what is talked about (e.g. messaging) and thus perceived to be Green IT and where common IT opportunities exist (or missed opportunities have occurred).

Green IT or at least the tenants of driving efficiency and effectiveness to use energy more effectively, address recycling and waste, removable of hazardous substance and other items continues to thrive. However, the green washing is subsiding and overtime organizations will not be as dismissive of Green IT in the context of improving productivity, reducing complexity and costs, optimization and related themes tied to economics where the environment gets a free ride.

Here are some related links:
Closing the Green Gap
Energy efficient technology sales depend on the pitch
EPA Energy Star for Data Center Storage Update
Green IT Confusion Continues, Opportunities Missed!
How to reduce your Data Footprint impact (Podcast)
Optimizing storage capacity and performance to reduce your data footprint
Performance metrics: Evaluating your data storage efficiency
PUE, Are you Managing Power, Energy or Productivity?
Saving Money with Green Data Storage Technology
Saving Money with Green IT: Time To Invest In Information Factories
Shifting from energy avoidance to energy efficiency
Storage Efficiency and Optimization: The Other Green
Supporting IT growth demand during economic uncertain times
The new Green IT: Efficient, Effective, Smart and Productive
The other Green Storage: Efficiency and Optimization
The Green and Virtual Data Center Book (CRC Press, Intel Recommended Reading)

Ok, nuff said for now

Cheers Gs

Greg Schulz – Author Cloud and Virtual Data Storage Networking (CRC Press, 2011), The Green and Virtual Data Center (CRC Press, 2009), and Resilient Storage Networks (Elsevier, 2004)

twitter @storageio

All Comments, (C) and (TM) belong to their owners/posters, Other content (C) Copyright 2006-2012 StorageIO and UnlimitedIO All Rights Reserved

Posted on

SNW Fall 2011 revisited and SNIA Emerald program

A couple of weeks ago I traveled down to Orlando Florida for a few days to attend the fall 2011 SNW (Storage Networking World) produced in conjunction by IDG Computerworld and the Storage Networking Industry Association (SNIA).

SNIA and SNW

While at the Orlando event, SNIA executive director Leo Legar asked me how many SNWs I had attended and my responses was on which continent?

My answer was part in fun however also serious as I have been attending SNWs (in addition to other SNIA events) for over ten years in both North and South America as well as in Europe including presenting SNIA tutorials and SNW sessions.

SNW is always good for meeting up with old friends and acquaintances along with meeting new ones including twitter tweeps (hashtag #snwusa #snw2011 @sniacloud @snwusa) and the recent event was no exception. Granted SNW is smaller than it was during its peak in the mid 2000s however it was great to go for a couple of days of meetings, checking out the expo hall and some sessions as well as getting out and about meeting people involved with servers, storage, networking, virtualization, cloud, hardware, software and services.

SNW remains as its name implies (Storage Networking World) an event around networking as in conversations, learning, knowledge exchange, information gathering and meetings not to mention the hands on lab. I found the two days I was there adequate to get the meetings and other activities I had planned, along with time for impromptu meetings. ANother observation was that during the peak of the large mega SNW events, while there were more meetings, they were also much shorter along the lines of speed dating vs. those a couple of weeks ago where there was time to have quality conversations.

Some of the news at the recent SNW event, involved SNIA and their Green Storage Initiative (GSI) announcing the availability of the Emerald program Green IT storage energy metrics that have been in the works for several years. The SNIA Emerald program consists of specifications, taxonomies, metrics and measurements standards to gauge various types of storage power or energy usage to gauge its effectiveness. In other words, yes, Green IT and Green storage are still alive, they just are not as trendy to talk about as they were a few years ago which a shift in focus towards productivity, effective use and supporting growth to help close the green gap and missed IT as well as business opportunities.

Also during the recent SNW event, I did a book signing event sponsored by SNIA. If you have not done so, check out the SNIA Cloud Storage Initiative (CSI) who arranged for several of my new book Cloud and Virtual Data Storage Networking to be given away. Book signings are fun in that I get to meet lots of people and hear what they are doing, encountering, looking for, have done, concerned or excited about. It was handy having SNIA CSI material available at the table as I was signing books and visiting with people to be able to give them information about things such as CDMI not to mention hearing what they were doing or looking for. Note to SNIA, if we do this again, lets make sure to have someone from the CSI at the table to join in the fun and conversations as there were some good ones. Learn more about the activities of the SNIA CSI including their Cloud Data Management Initiative (CDMI) here.

SNIA Cloud Storage Initiaive CSI

Thanks again to SNIA for arranging the book signing event and for those who were not able to get a copy of my new book before they ran out, my publisher CRC Press Taylor and Francis has arranged a special SNIA and SNW discount code. To take advantage of the SNIA and SNW discount code, go to the CRC Press web site (here) and apply the discount code KVK01 during checkout for catalog item K12375 (ISBN: 9781439851739).

30 percent discount code for Cloud and Virtual Data Storage Networking Book

Thanks again to Wayne Adams (@wma01606), Leo Legar and Michael Meleedy among others who arranged for a fantastic fall 2011 SNW event along with everyone who participated in the book signing event and other conversations while in Orlando and to those who were involved virtually via twitter.

Ok, nuff said for now

Cheers gs

Greg Schulz – Author Cloud and Virtual Data Storage Networking (CRC Press, 2011), The Green and Virtual Data Center (CRC Press, 2009), and Resilient Storage Networks (Elsevier, 2004)

twitter @storageio

All Comments, (C) and (TM) belong to their owners/posters, Other content (C) Copyright 2006-2011 StorageIO and UnlimitedIO All Rights Reserved

Posted on

The new Green IT: Efficient, Effective, Smart and Productive

Given the buzz about big data and conversations or confusion around clouds along with virtualizing virtually anything possible, Green IT has fallen off the Buzzword Bingo Bandwagon.

Green IT like so many other buzzwords and trends typically go through a hype cycle before getting tired, worn out, or disillusioned (see here and here). Often these buzzwords will go to Some Day Isle for some rest and recuperation before reappearing later as part of a second or third buzzword wave either making it to broad adoption which means the plateau of profitability (for vendors or vars) and productivity (for customers) or disappearing.

Some Day Isle for those not familiar with it is a visional or fictional place that some day you will go to, a wishful happy place so to speak that is perfect for hyperbole R and R. After some R and R, these trends, technologies or techniques often reappear well rested and ready for the next wave of buzz, FUD, hype and activity.

Keep in mind that industry adoption (e.g. everybody is talking about it) can differ from industry deployment (e.g. some people have actually paid for, deployed and using the technology) to broad customer adoption (e.g. many people are actually paying for, deploying and using the technology on a routine basis).

Confusion still reigns around Green IT not surprising given the heavy dose of Green Washing that has occurred.

Consequently Green IT themes or pitches often fall on deaf ears as people have either become numb or ignore the Green washing hype or FUD. For example many people will skip reading this post because the word Green is in the title assuming that it is another CO2 or related themed piece missing out on the other themes or messages here. Unfortunately as I have discussed in the past, there remains a Green Gap that results in missed opportunities for vendors, vars, service providers, IT organizations along with those who would like to see environmental benefits or change.

Another example of a Green gap is messaging around energy avoidance as being efficient vs. using energy in a more productive or effective manner (doing more work with the same or fewer resources) shown in the figure below.

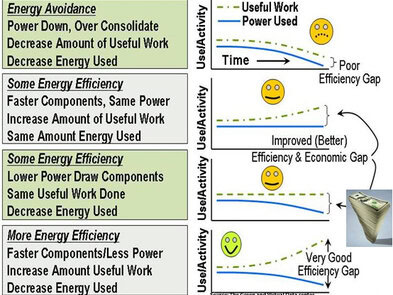

Tiered Storage
Expanding focus from energy avoidance to energy usage effectiveness

In routine conversations with IT professionals it is clear that the Green Gap and thus missed opportunities will continue for some time until the business and economic values of efficient, effective, smart and productive IT are understood to have environmental benefits as a by product and thus being Green. Watch for more missed messaging around CO2 and related themes popular with so called Greenies (or if you prefer environmentalists) that miss the mark with most business and IT organizations.

Business and thus IT are driven by economics and as such will invest where they can reduce complexity and costs, become more efficient and effective while increasing productivity and reducing waste by working smarter. In other words, by changing how information services are delivered in a smarter more effective efficient manner maximizes what resources are used enabling more to be done in a denser footprint (budget, people staffing, management, power, cooling, floor space) that have positive environmental benefits. Put another way, a benefit for IT organizations to remove complexity results in lower costs, by becoming more efficient and effective reducing waste results in better productivity and fewer missed opportunities meaning enhanced profits. The net result is that environmental concerns get a free ride or being funded as a result of IT organizations improving their productivity which of course should have a business benefit.

Efficient and Optimized IT Wheel of Oppourtunity
Wheel of Opportunity: Various techniques and technologies for infrastructure optimization

Efficient and effective IT (aka the other Green IT) that links to common technology and business issues with the benefit of helping the environment can be accomplished using a combination approaches. The approaches for enabling an efficient, effective, smarter and productive IT environment includes from a generic perspective various technologies, techniques and best practices shown in the wheel of opportunity figure.

For example:

Here are some related links for additional reading:

Also check out my book for enabling efficient, effective and smart IT The Green and Virtual Data Center (CRC) including a free sample chapter download here.

Ok, nuff said for now, go hug a tree, your computer, hybrid car, droid, ipad or whatever suits your needs.

Cheers gs

Greg Schulz – Author Cloud and Virtual Data Storage Networking (CRC), The Green and Virtual Data Center (CRC), Resilient Storage Networks (Elsevier)
twitter @storageio

All Comments, (C) and (TM) belong to their owners/posters, Other content (C) Copyright 2006-2011 StorageIO and UnlimitedIO All Rights Reserved

Posted on

Green IT goes mainstream: What about data storage environments?

I recently did an interview with the folks over at Infortrend (a RAID storage company) discussing various industry trends and perspectives including RAID, data footprint reduction (DFR) as well as Green IT including how the Green Gap.

The Green Gap is the disconnect between common messaging around carbon and environment vs. IT and business productivity sustainment challenges that continues to result in confusion along with missed opportunities.

  • There is no such thing as a data or information recession
  • Organizations of all size will continue to have to support growth in a denser fashion
  • Doing more in a denser manner also means acquiring as well as managing more usable IT resources per dollar spent
  • Optimization and data footprint reduction (DFR) expands focus from reduction efficiency to productivity effectiveness
  • Energy efficiency shifts from avoidance to energy effectiveness where more work is done to support business productivity and sustainment
  • RAID is alive however it continues to evolve as well as leveraged in conjunction with other techniques

Here is the link to the first of a two part series where you can read my comments on how many organizations are missing out on economic as well as business sustainability benefits due to confusion and the Green Gap among other topics.

Ok, nuff said.

Cheers gs

Greg Schulz – Author Cloud and Virtual Data Storage Networking (CRC Press), The Green and Virtual Data Center (CRC Press) and Resilient Storage Networks (Elsevier)
twitter @storageio

All Comments, (C) and (TM) belong to their owners/posters, Other content (C) Copyright 2006-2024 Server StorageIO and UnlimitedIO LLC All Rights Reserved

Posted on

July 2010 Odds and Ends: Perspectives, Tips and Articles

Here are some items that have been added to the main StorageIO website news, tips and articles, video podcast related pages that pertain to a variety of topics ranging from data storage, IO, networking, data centers, virtualization, Green IT, performance, metrics and more.

These content items include various odds and end pieces such as industry or technology commentary, articles, tips, ATEs (See additional ask the expert tips here) or FAQs as well as some video and podcasts for your mid summer (if in the northern hemisphere) enjoyment.

The New Green IT: Productivity, supporting growth, doing more with what you have

Energy efficient and money saving Green IT or storage optimization are often associated to mean things like MAID, Intelligent Power Management (IPM) for servers and storage disk drive spin down or data deduplication. In other words, technologies and techniques to minimize or avoid power consumption as well as subsequent cooling requirements which for some data, applications or environments can be the case. However there is also shifting from energy avoidance to that of being efficient, effective, productive not to mention profitable as forms of optimization. Collectively these various techniques and technologies help address or close the Green Gap and can reduce the amount of Green IT confusion in the form of boosting productivity (same goes for servers or networks) in terms of more work, IOPS, bandwidth, data moved, frames or packets, transactions, videos or email processed per watt per second (or other unit of time).

Click here to read and listen to my comments about boosting IOPs per watt, or here to learn more about the many facets of energy efficient storage and here on different aspects of storage optimization. Want to read more about the next major wave of server, storage, desktop and networking virtualization? Then click here to read more about virtualization life beyond consolidation where the emphasis or focus expands to abstraction, transparency, enablement in addition to consolidation for servers, storage, networks. If you are interested in metrics and measurements, Storage Resource Management (SRM) not to mention discussion about various macro data center metrics including PUE among others, click on the preceding links.

NAS and Shared Storage, iSCSI, DAS, SAS and more

Shifting gears to general industry trends and commentary, here are some comments on consumer and SOHO storage sharing, the role and importance Value Added Resellers (VARs) serve for SMB environments, as well as the top storage technologies that are in use and remain relevant. Here are some comments on iSCSI which continues to gain in popularity as well as storage options for small businesses.

Are you looking to buy or upgrade a new server? Here are some vendor and technology neutral tips to help determine needs along with requirements to help be a more effective informed buyer. Interested or do you want to know more about Serial Attached SCSI (6Gb/s SAS) including for use as external shared direct attached storage (DAS) for Exchange, Sharepoint, Oracle, VMware or HyperV clusters among other usage scenarios, check out this FAQ as well as podcast. Here are some other items including a podcast about using storage partitions in your data storage infrastructure, an ATE about what type of 1.5TB centralized storage to support multiple locations, and a video on scaling with clustered storage.

That is all for now, hope all is well and enjoy the content.

Cheers gs

Greg Schulz – Author The Green and Virtual Data Center (CRC) and Resilient Storage Networks (Elsevier)
twitter @storageio

Posted on

Happy Earth Day 2010!

Here in the northern hemisphere it is late April and thus mid spring time.

That means the trees sprouting their buds, leaves and flowering while other plants and things come to life.

In Minnesota where I live, there is not a cloud in the sky today, the sun is out and its going to be another warm day in the 60s, a nice day to not be flying or traveling and thus enjoy the fine weather.

Among other things of note on this earth day 2010 include:

  • Minnesota Twins new home Target Field was just named the most Green Major League Baseball (MLB) stadium as well as greenest in the US with its LEED (or see here) certification.
  • Icelands Eyjafjallajokull volcano continues to spew water vapor steam, CO2 and ash at a slower rate than last week when it first erupted with some speculating that there could be impending activity from other Icelandic volcanos. Some estimates placed the initial eruption CO2 impact and subsequent flight cancellations to be neutral, essentially canceling each other out, however Im sure we will be hearing many different stories in the weeks to come.


    • Image of Iceland Eyjafjallajokull Volcano Eruption via Boston.com

  • Flights to/from and within Europe and the UK are returning to normal
  • Toyota continues to deal with recalls on some of their US built automobiles including the energy efficient Prius, some of which may have been purchased during the recent US cash for clunkers (CFC) program (hmm, is that ironic or what?)
  • Greenpeace in addition to using a Facebook page to protest Facebook data center practices is now targeting cloud IT in general including just before the Apple iPad launch (Heres some comments from Microsoft).
  • Vendors in all industries are lining up for the second coming of Green marketing or perhaps Green Washing 2.0

The new Green IT, moving beyond Green wash and hype

Speaking of Green IT including Green Computing, Green Storage, Virtualization, Cloud, Federation and more, here is a link to a post that I did back in February discussing how the Green Gap continues to exist.

The green gap exists and centers around the confusion of what Green means along with the common disconnects between core IT issues or barriers to becoming more efficient, effective, flexible and optimized from both an economic as well as environmental basis to those commonly messaged to under the green umbrella (read more here).

Regardless of where you stand on Green, Green washing, Green hype, environmentalism, eco-tech and other related themes, for at least a moment, set aside the politics and science debates and think in terms of practicality and economics.

That is, look for simple, recurring things that can be done to stretch your dollar or spending ability in order to support demand (See figure below) in a more effective manner along with reducing waste. For example to meet growing demand requirements in the face of shrinking or stagnate budgets, the action is to stretch available resources to do more work when needed, or retain more where applicable with the same or less footprint. What this means is that while common messaging is around reducing costs, look at the inverse which is to do more with available budgets or resources. The result is green in terms of economic and environmental benefits.

IT Resource demand
Increasing IT Resource Demand

Green IT wheel of oppourtunity
Green IT enablement techniques and technologies

Look at and understand the broader aspects of being green which has both economical and environmental benefits without compromising on productivity or functionality. There are many aspects or facets of being green beyond those commonly discussed or perceived to be so (See Green IT enablement techniques and technologies figure above).

Certainly recycling of paper, water, aluminum, plastics and other items including technology equipment are important to reduce waste and are things to consider. Another aspect of reducing waste particularly in IT is to avoid rework that can range from finding network bottlenecks or problems that result in continuous retransmission of data for failed backup, replication or data transfers that cause lost opportunity or resource consumption. Likewise programming errors (bugs) or miss configuration that results in rework or lost productivity also are forms of waste among others.

Another theme is that of shifting from energy avoidance to energy efficiency and effectiveness which are often thought to the same. However the expanded focus is also about getting more work done when needed with the same or less resources (See figure below) for example increasing activity (IOPS, transactions, emails or video served, bandwidth or messages) per watt of energy consumed.

From energy avoidence to effectiveness
Shifting from energy avoidance to effectiveness

One of the many techniques and approaches for addressing energy including stretching resources and being green include intelligent power management (IPM). With IPM, the focus is not strictly centered around energy avoidance, instead about inteligently adapting to different workloads or activity balancing performance and energy. Thus when there is work to be done, get the work done quickly with as little energy as possible (IOP or activity per watt), when there is less work, provide lower performance and thus smaller energy requirements, or when no work to be done, going into additional energy saving modes. Thus power management does not have to be exclusively about turrning off the lights or IT equipment in order to be green.

The following two figures look at Green IT past, present and future with an expanding focus around optimization and effectiveness meaning getting more work done, storing more data for longer periods of time, meeting growth demands with what appears to be additional resources however at a lower per unit cost without compromising on performance, availability or economics.

Green IT wheel of oppourtunity
Green IT: Past, present and future shift from avoidance to efficiency and effectiveness

Green IT wheel of oppourtunity
The new Green IT: Boosting business effectiveness, maximize ROI while helping the environment

If you think about going green as simply doing or using things more effectively, reducing waste, working more intelligently or effectively the benefits are both economical and environmentally positive (See the two figures above).

Instead of finding ways to fund green initiatives, shift the focus to how you can enable enhanced productivity, stretching resources further, doing more in the same or smaller footprint (floor space, power, cooling, energy, personal, licensing, budgets) for business economic and environmental sustainability with the result being environmental encampments.

Also keep in mind that small percentage changes on a large or recurring basis have significant benefits. For example a small change in cooling temperatures while staying within vendor guideline recommendations can result in big savings for large environments.



Bottom line

If you are a business and discounting green as simply a fad, or perhaps as a public relations (PR) initiative or activity tied to reducing carbon footprints and recycling then you are missing out on economic (top and bottom line) enhancement opportunities.

Likewise if you think that going green is only about the environment, then there is a missed opportunity to boost economic opportunities to help fund those inititiaves.

Going green means many different things to various people and is often more broad and common sense based than most realize.

That is all for now, happy earth day 2010

Cheers gs

Greg Schulz – Author The Green and Virtual Data Center (CRC) and Resilient Storage Networks (Elsevier)
twitter @storageio

Posted on

Its US Census time, What about IT Data Centers?

It is that once a decade activity time this year referred to as the US 2010 Census.

With the 2010 census underway, not to mention also time for completing and submitting your income tax returns, if you are in IT, what about measuring, assessing, taking inventory or analyzing your data and data center resources?

US 2010 Cenus formsUS 2010 Cenus forms
Figure 1: IT US 2010 Census forms

Have you recently taken a census of your data, data storage, servers, networks, hardware, software tools, services providers, media, maintenance agreements and licenses not to mention facilities?

Likewise have you figured out what if any taxes in terms of overhead or burden exists in your IT environment or where opportunities to become more optimized and efficient to get an IT resource refund of sorts are possible?

If not, now is a good time to take a census of your IT data center and associated resources in what might also be called an assessment, review, inventory or survey of what you have, how its being used, where and who is using and when along with associated configuration, performance, availability, security, compliance coverage along with costs and energy impact among other items.

IT Data Center Resources
Figure 2: IT Data Center Metrics for Planning and Forecasts

How much storage capacity do you have, how is it allocated along with being used?

What about storage performance, are you meeting response time and QoS objectives?

Lets not forget about availability, that is planned and unplanned downtime, how have your systems been behaving?

From an energy or power and cooling standpoint, what is the consumption along with metrics aligned to productivity and effectiveness. These include IOPS per watt, transactions per watt, videos or email along with web clicks or page views per watt, processor GHz per watt along with data movement bandwidth per watt and capacity stored per watt in a given footprint.

Other items to look into for data centers besides storage include servers, data and I/O networks, hardware, software, tools, services and other supplies along with physical facility with metrics such as PUE. Speaking of optimization, how is your environment doing, that is another advantage of doing a data center census.

For those who have completed and sent in your census material along with your 2009 tax returns, congratulations!

For others in the US who have not done so, now would be a good time to get going on those activities.

Likewise, regardless of what country or region you are in, its always a good time to take a census or inventory of your IT resources instead of waiting every ten years to do so.

Ok, nuff said.

Cheers gs

Greg Schulz – Author Cloud and Virtual Data Storage Networking (CRC Press), The Green and Virtual Data Center (CRC Press) and Resilient Storage Networks (Elsevier)
twitter @storageio

All Comments, (C) and (TM) belong to their owners/posters, Other content (C) Copyright 2006-2024 Server StorageIO and UnlimitedIO LLC All Rights Reserved

Posted on

Inaugural StorageIO Newsletter

Welcome to the winter 2010 edition of the Server and StorageIO (StorageIO) news letter. This inaugural edition of the StorageIO news letter coincides with our 5th year in business along with recent web site and blog enhancements.

In an age of social media including facebook, twitter, blogs and video, some might ask the question of why a news letter, after all, is that not old school or non social media?

For those who are immersed into twitter, blogs, facebook, feeds and other Web 2.0 means of communication, a traditional newsletter might not be in vogue.

StorageIO News Letter Image
Winter 2010 Newsletter
(Inaugural Edition)

However, realizing that there is still a large percentage of the population which also means a vast number of visitors and guest of StorageIO web sites and blogs or viewers of articles along with other content that do not use twitter, facebook, LinkedIn or RSS feeds, I realize that there is still a role for a newsletter.

Thus, it makes sense to bring info to those of you who prefer a traditional news letter format via email or other subscription, however this newsletter is available in HTML or PDF formats.

You can access this news letter via various social media venues (some are shown below) in addition to StorageIO web sites and subscriptions. Click on the following links to view the inaugural newsletter as HTML or PDF or, to go to the newsletter page.

Follow via Goggle Feedburner here or via email subscription here.

You can also subscribe to the news letter by simply sending an email to newsletter@storageio.com

Enjoy this inaugural edition of the StorageIO newsletter, let me know your comments and feedback.

Also, a very big thank you to everyone who has helped make StorageIO a success!.

Cheers gs

Greg Schulz – Author Cloud and Virtual Data Storage Networking (CRC Press, 2011), The Green and Virtual Data Center (CRC Press, 2009), and Resilient Storage Networks (Elsevier, 2004)

twitter @storageio

All Comments, (C) and (TM) belong to their owners/posters, Other content (C) Copyright 2006-2012 StorageIO and UnlimitedIO All Rights Reserved
