Part II Revisting AWS S3 Storage Gateway (Test Drive Deployment)

server storage I/O trends

Part II Revisiting AWS S3 Storage Gateway (Test Drive Deployment)

This Amazon Web Service (AWS) Storage Gateway Revisited posts is a follow-up to the AWS Storage Gateway test drive and review I did a few years ago (thus why it’s called revisited). As part of a two-part series, the first post looks at what AWS Storage Gateway is, how it has improved since my last review of AWS Storage Gateway along with deployment options. The second post in the series looks at a sample test drive deployment and use.

What About Storage Gateway Costs?

Costs vary by region, type of storage being used (files stored in S3, Volume Storage, EBS Snapshots, Virtual Tape storage, Virtual Tape storage archive), as well as type of gateway host, along with how access and used. Request pricing varies including data written to AWS storage by gateway (up to maximum of $125.00 per month), snapshot/volume delete, virtual tape delete, (prorate fee for deletes within 90 days of being archived), virtual tape archival, virtual tape retrieval. Note that there are also various data transfer fees that also vary by region and gateway host. Learn more about pricing here.

What Are Some Storage Gateway Alternatives

AWS and S3 storage gateway access alternatives include those from various third-party (including that are in the AWS marketplace), as well as via data protection tools (e.g. backup/restore, archive, snapshot, replication) and more commonly storage systems. Some tools include Cloudberry, S3FS, S3 motion, S3 Browser among many others.

Tip is when a vendor says they support S3, ask them if that is for their back-end (e.g. they can access and store data in S3), or front-end (e.g. they can be accessed by applications that speak S3 API). Also explore what format the application, tool or storage system stores data in AWS storage, for example, are files mapped one to one to S3 objects along with corresponding directory hierarchy, or are they stored in a save set or other entity.

AWS Storage Gateway Deployment and Management Tips

Once you have created your AWS account (if you did not already have one) and logging into the AWS console (note the link defaults to US East 1 Region), go to the AWS Services Dashboard and select Storage Gateway (or click here which goes to US East 1). You will be presented with three options (File, Volume or VTL) modes.

What Does Storage Gateway and Install Look Like

The following is what installing a AWS Storage Gateway for file and then volume looks like. First, access the AWS Storage Gateway main landing page (it might change by time you read this) to get started. Scroll down and click on the Get Started with AWS Storage Gateway button or click here.

AWS Storage Gateway Landing Page

Select type of gateway to create, in the following example File is chosen.

Select type of AWS storage gateway

Next select the type of file gateway host (EC2 cloud hosted, or on-premises VMware). If you choose VMware, an OVA will be downloaded (follow the onscreen instructions) that you deploy on your ESXi system or with vCenter. Note that there is a different VMware VM gateway OAV for File Gateway and another for Volume Gateway. In the following example VMware ESXi OVA is selected and downloaded, then accessed via VMware tools such as vSphere Web Client for deployment.

AWS Storage Gateway select download

Once your VMware OVA file is downloaded from AWS, install using your preferred VMware tool, in this case I used the vSphere Web Client.

AWS Storage Gateway VM deploy

Once you have deployed the VMware VM for File Storage Gateway, it is time to connect to the gateway using the IP address assigned (static or DHCP) for the VM. Note that you may need to allocate some extra VMware storage to the VM if prompted (this mainly applies to Volume Gateway). Also follow directions about setting NTP time, using paravirtual adapters, thick vs. thin provisioning along with IP settings. Also double-check to make sure your VM and host are set for high-performance power setting. Note that the default username is sguser and password is sgpassword for the gateway.

AWS Storage Gateway Connect

Once you successfully connect to the gateway, next step will be to configure file share settings.

AWS Storage Gateway Configure File Share

Configure file share by selecting which gateway to use (in case you have more than one), name of an S3 bucket name to create, type of storage (S3 Standard or IA), along with Access Management security controls.

AWS Storage Gateway Create Share

Next step is to complete file share creation, not the commands provided for Linux and Windows for accessing the file share.

AWS Storage Gateway Review Share Settings

Review file share settings

AWS Storage Gateway access from Windows

Now lets use the file share by accessing and mounting to a Windows system, then copy some files to the file share.

AWS Storage Gateway verify Bucket Items

Now let’s go to the AWS console (or in our example use S3 Browser or your favorite tool) and look at the S3 bucket for the file share and see what is there. Note that each file is an object, and the objects simply appear as a file. If there were sub-directory those would also exist. Note that there are other buckets that I have masked out as we are only interested in the one named awsgwydemo that is configured using S3 Standard storage.

AWS Storage Gateway Volume

Now lets look at using the S3 Storage Gateway for Volumes. Similar to deploying for File Gateway, start out at the AWS Storage Gateway page and select Volume Gateway, then select what type of host (EC2 cloud, VMware or Hyper-V (2008 R2 or 2012) for on-premises deployment). Lets use the VMware Gateway, however as mentioned above, this is a different OVA/OVF than the File Gateway.

AWS Storage Gateway Configure Volume

Download the VMware OVA/OVF from AWS, and then install using your preferred VMware tools making sure to configure the gateway per instructions. Note that the Volume Gateway needs a couple of storage devices allocated to it. This means you will need to make sure that a SCSI adapter exists (or add one) to the VM, along with the disks (HDD or SSD) for local storage. Refer to AWS documentation about how to size, for my deployment I added a couple of small 80GB drives (you can choose to put on HDD or SSD including NVMe). Note that when connecting to the gateway if you get an error similar to below, make sure that you are in fact using the Volume Gateway and not mistakenly using the File Gateway OVA (VM). Note that the default username is sguser and password is sgpassword for the gateway.

AWS Storage Gateway Connect To Volume

Now connect to the local Volume Storage Gateway and notice the two local disks allocated to it.

AWS Storage Gateway Cached Volume Deploy

Next its time to create the Gateway which are deploying a Volume Cached below.

AWS Storage Gateway Volume Create

Next up is creating a volume, along with its security and access information.

AWS Storage Gateway Volume Settings

Volume configuration continued.

AWS Storage Gateway Volume CHAP

And now some additional configuration of the volume including iSCSI CHAP security.

AWS Storage Gateway Windows Access

Which leads us up to some Windows related volume access and configuration.

AWS Storage Gateway Using iSCSI Volume

Now lets use the new iSCSI based AWS Storage Gateway Volume. On the left you can see various WIndows command line activity, along with corresponding configuration information on the right.

AWS Storage Gateway Being Used by Windows

And there you have it, a quick tour of AWS Storage Gateway, granted there are more options that you can try yourself.

AWS

Where To Learn More

What This All Means

Overall I like the improvements that AWS has made to the Storage Gateway along with the different options it provides. Something to keep in mind is that if you are planning to use the AWS Storage Gateway File serving sharing mode that there are caveats to multiple concurrent writers to the same bucket. I would not be surprised if some other gateway or software based tool vendors tried to throw some fud towards the Storage Gateway, however ask them then how they coordinate multiple concurrent updates to a bucket while preserving data integrity.

Which Storage Gateway variant from AWS to use (e.g. File, Volume, VTL) depends on what your needs are, same with where the gateway is placed (Cloud hosted or on-premises with VMware or Hyper-V). Keep an eye on your costs, and more than just the storage space capacity. This means pay attention to your access and requests fees, as well as different service levels, along with data transfer fees.

You might wonder what about EFS and why you would want to use AWS Storage Gateway? Good question, at the time of this post EFS has evolved from being internal (e.g. within AWS and across regions) to having an external facing end-point however there is a catch. That catch which might have changed by time you read this is that the end-point can only be accessed from AWS Direct Connect locations.

This means that if your servers are not in a AWS Direct Connect location, without some creative configuration, EFS is not an option. Thus Storage Gateway File mode might be an option in place of EFS as well as using AWS storage access tools from others. For example I have some of my S3 buckets mounted on Linux systems using S3FS for doing rsync or other operations from local to cloud. In addition to S3FS, I also have various backup tools that place data into S3 buckets for backup, BC and DR as well as archiving.

Check out AWS Storage Gateway yourself and see what it can do or if it is a fit for your environment.

Ok, nuff said (for now…).

Cheers
Gs

Greg Schulz – Multi-year Microsoft MVP Cloud and Data Center Management, VMware vExpert (and vSAN). Author Cloud and Virtual Data Storage Networking (CRC Press), The Green and Virtual Data Center (CRC Press), Resilient Storage Networks (Elsevier) and twitter @storageio. Watch for the spring 2017 release of his new book "Software-Defined Data Infrastructure Essentials" (CRC Press).

Courteous comments are welcome for consideration. First published on https://storageioblog.com any reproduction in whole, in part, with changes to content, without source attribution under title or without permission is forbidden.

All Comments, (C) and (TM) belong to their owners/posters, Other content (C) Copyright 2006-2023 Server StorageIO(R) and UnlimitedIO. All Rights Reserved.

Posted on

iVMcontrol iPhone VMware management, iTool or iToy?

Storage I/O trends

iVMcontrol iPhone VMware management, iTool or iToy?

A few months back I was looking for a simple easy to use yet robust tool for accessing and managing my VMware environment from my iPhone. The reason being is that I don’t always like to carry a laptop or tablet around, not to mention neither fits in a pocket very well. Needless to say there are many options for accessing VMware products and implementations that run on tablets including iPads as well as laptops among others.

Why do I need iVMcontrol

I wanted something that I could quickly access and check on a VM guest, start or stop things, gain status updates if or when needed from my iPhone. Also keeping in mind that this would be a tool that would not be used constantly throughout the day, maybe at best one or twice a week, hence needed to be affordable as well. At $9.99 USD the tool I found and selected (iVMcontrol) was not for free, however I have gotten that value out of the tool already in just a few months of having it.

As mentioned, the tool is iVMcontrol which you can get from the iTunes store (here’s the link).

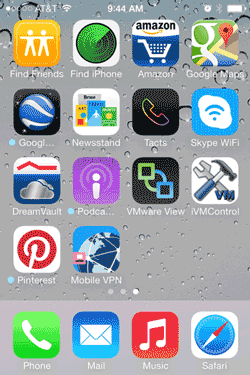

Storage I/O IVM on iPhone
View of iVMcontrol from iPhone

Granted iVMcomtrol is not the same as other app’s for full-sized tablets or laptops, however for an iPhone it’s not bad! In fact other than a few nuances namely using a virtual mouse, it’s pretty good for what I use it for.

That’s the key is that while I use the vSphere client or vCenter Browser for real activities, iVMcontrol served a different purpose. That purpose is for example if I just need to check on something or do basic functions without having to get the laptop out or something else.  Even in the lab if I’m making a change or need to start or stop things and forget the laptop in another room, no worries simply use the iPhone.

Sure using a tablet would be easier, however I usually don’t care a tablet in my pocket.

How often do I use iVMcontrol?

Depends however usually a couple of times a week depending on what I’m doing.

For example if I need to quickly check on a guest VM, start or stop something, or general status check iVMcontrol has come in handy.

Storage I/O IVM main screen
Various VMware hosts (PM’s) in a VMware datacenter

Storage I/O IVM main screen
Various Guest VMs on VMware host (PM)

iVM VMware storage I/O space
VMware host storage space capacity usage

Storage I/O IVM main screen
Managing a guest VM

iVM Windows guest
Accessing Windows Guest VM via iVMcontrol

iVM Windows guest storage I/O activity
Checking on Windows Guest Storage I/O activity

As you can see the screen is small, sure you can zoom in thus good for checking in on activity, or doing basic things. However for more involved activity, that’s where a tablet or regular computer comes into play accessing the VM guests, or VMware using the vSphere Client or vCenter web client type tools.

Is iVMcontrol an iTool or iToy?

IMHO its a tool, granted its also a fun toy.

Is a tool such as iVMcontrol a necessity or a nice to have for when I need to use it to check on something quick.

That depends on what you need vs. wants.

For me, it is a convince tool to have when I need it, however just because I have it does not mean I have to use it all the time.

Ok, nuff said (for now)

Cheers Gs

Greg Schulz – Author Cloud and Virtual Data Storage Networking (CRC Press), The Green and Virtual Data Center (CRC Press) and Resilient Storage Networks (Elsevier)
twitter @storageio

All Comments, (C) and (TM) belong to their owners/posters, Other content (C) Copyright 2006-2024 Server StorageIO and UnlimitedIO LLC All Rights Reserved

Posted on

VCE revisited, now & zen

StorageIO Industry trends and perspectives image

Yesterday VCE and their proud parents announced revenues had reached an annual run rate of a billion dollars. Today VCE announced some new products along with enhancements to others.

Before going forward though, lets take go back for a moment to help set the stage to see where things might be going in the future. A little over a three years ago, back in November 2009 VCE was born and initially named ACADIA by its proud parents (Cisco, EMC, Intel and VMware). Here is a post that I did back then.

Btw the reference to Zen might cause some to think that I don’t how to properly refer to the Xen hypervisor. It is really a play from Robert Plants album Now & Zen and its song Tall Cool One. For those not familiar, click on the link and listen (some will have DejaVu, others might think its new and cool) as it takes a look back as well as present, similar to VCE.

Robert plant now & zen vs. Xen hypervisor

On the other hand, this might prompt the question of when will Xen be available on a Vblock? For that I defer you to VCE CTO Trey Layton (@treylayton).

VCE stands for Virtual Computing Environment and was launched as a joint initiative including products and a company (since renamed from Acadia to VCE) to bring all the pieces together. As a company, VCE is based in Plano (Richardson) Texas just north of downtown Dallas and down the road from EDS or what is now left of it after the HP acquisition  The primary product of VCE has been the Vblock. The Vblock is a converged solution comprising components from their parents such as VMware virtualization and management software tools, Cisco servers, EMC storage and software tools and Intel processors.

Not surprisingly there are many ex-EDS personal at VCE along with some Cisco, EMC, VMware and many other people from other organizations in Plano as well as other cites. Also interesting to note that unlike other youngsters that grow up and stay in touch with their parents via technology or social media tools, VCE is also more than a few miles (try hundreds to thousands) from the proud parent headquarters on the San Jose California and Boston areas.

As part of a momentum update, VCE and their parents (Cisco, EMC, VMware and Intel) announced annual revenue run rate of a billion dollars in just three years. In addition the proud parents and VCE announced that they have over 1,000 revenue shipped and installed Vblock systems (also here) based on Cisco compute servers, and EMC storage solutions.

The VCE announcement consists of:

  • SAP HANA database application optimized Vblocks (two modes, 4 node and 8 node)
  • VCE Vision management tools and middleware or what I have refered to as Valueware
  • Entry level Vblock (100 and 200) with Cisco C servers and EMC (VNXe and VNX) storage
  • Performance and functionality enhancements to existing Vblock models 300 and 700
  • Statement of direction for more specialized Vblocks besides SAP HANA


Images courtesy with permission of VCE.com

While VCE is known for their Vblock converged, stack, integrated, data center in a box, private cloud or among other descriptors, there is more to the story. VCE is addressing convergence of common IT building blocks for cloud, virtual, and traditional physical environments. Common core building blocks include servers (compute or processors), networking (IO and connectivity), storage, hardware, software, management tools along with people, processes, metrics, policies and protocols.

Storage I/O image of cloud and virtual IT building blocks

I like the visual image that VCE is using (see below) as it aligns with and has themes common to what I have discussing in the past.


Images courtesy with permission of VCE.com

VCE Vision is software with APIs that collects information about Vblock hardware and software components to give insight to other tools and management frameworks. For example VMware vCenter plug-in and vCenter Operations Manager Adapter which should not be a surprise. Customers will also be able to write to the Vision API to meet their custom needs. Let us watch and see what VCE does to add support for other software and management tools, along with gain support from others.


Images courtesy with permission of VCE.com

Vision is more than just an information source feed for VMware vCenter or VASA or tools and frameworks from others. Vision is software developed by VCE that will enable insight and awareness into the Vblock and applications, however also confirm and give status of physical and logical component configuration. This means the basis for setting up automated or programmatic remediation such as determining what software or firmware to update based on different guidelines.


Images courtesy with permission of VCE.com

Initially VCE Vision provides (information) inventory and perspective of how those components are in compliance with firmware or software releases, so stay tuned. VCE is indicating that Vision will continue to evolve after all this is the V1.0 release with future enhancements targeted towards taking action, controlling or active management.

StorageIO Industry trends and perspectives image

Some trends, thoughts and perspectives

The industry adoption buzz is around software defined X where X can be data center (SDDC), or storage (SDS) or networking (SDN), or marketing (SDM) or other things. The hype and noise around software defined which in the case of some technologies is good. On the marketing hype side, this has led to some Software Defined BS (SDBS).

Thus, it was refreshing at least in the briefing session I was involved in to hear a minimum focus around software defined and more around customer and IT business enablement with technology that is shipping today.

VCE Vision is a good example of adding value hence what I refer to as Valueware around converged components. For those vendors who have similar solutions, I urge them to streamline, simplify and more clearly articulate their value proposition if they have valueware.

Vendors including VCE continue to evolve their platform based converged solutions by adding more valueware, management tools, interfaces, APIs, interoperability and support for more applications. The support for applications is also moving beyond simple line item ordering or part number skews to ease acquisition and purchasing. Some solutions include VCE Vblock, NetApp FlexPod that also uses Cisco compute servers, IBM PureSystems (PureFlex etc) and Dell vStart among others are extending their support and optimization for various software solutions. These software solutions range from SAP (including HANA), Microsoft (Exchange, SQLserver, Sharepoint), Citrix desktop (VDI), Oracle, OpenStack, Hadoop map reduce along with other little-data, big-data and big-bandwidth applications to name a few.

Additional and related reading:
Acadia VCE: VMware + Cisco + EMC = Virtual Computing Environment
Cloud conversations: Public, Private, Hybrid what about Community Clouds?
Cloud, virtualization, Storage I/O trends for 2013 and beyond
Convergence: People, Processes, Policies and Products
Hard product vs. soft product
Hardware, Software, what about Valueware?
Industry adoption vs. industry deployment, is there a difference?
Many faces of storage hypervisor, virtual storage or storage virtualization
The Human Face of Big Data, a Book Review
Why VASA is important to have in your VMware CASA

Congratulations to VCE, along with their proud parents, family, friends and partners, now how long will it take to reach your next billion dollars in annual run rate revenue. Hopefully it wont be three years until the next VCE revisited now and Zen ;).

Disclosure: EMC and Cisco have been StorageIO clients, I am a VMware vExpert that gets me a free beer after I pay for VMworld and Intel has named two of my books listed on their Recommended Reading List for Developers.

Ok, nuff said, time to head off to vBeers over in Minneapolis.

Cheers gs

Greg Schulz – Author Cloud and Virtual Data Storage Networking (CRC Press, 2011), The Green and Virtual Data Center (CRC Press, 2009), and Resilient Storage Networks (Elsevier, 2004)
